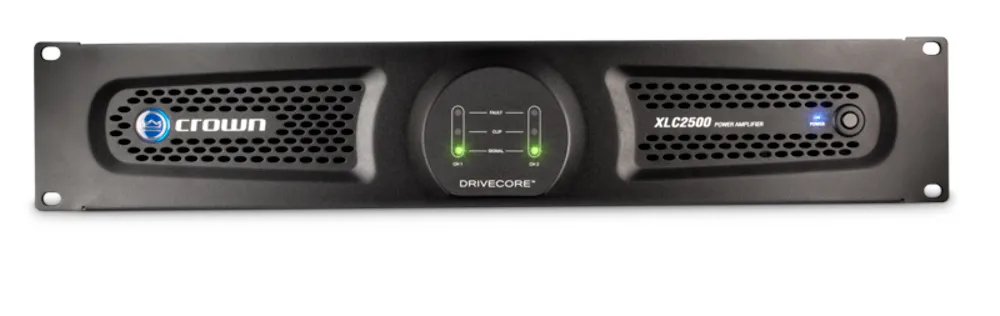

Crown XLC2500, 2 x 500 W @ 4 ohm

Available in two models, the XLC2500 and XLC2800 incorporate Crown’s proprietary DriveCore™ Technology, which significantly reduces the amplifiers’ size, while yielding much more energy efficient operation – without sacrificing performance. Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.

AC Line Voltage and Frequency Configurations Available (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
Voltage Gain 35
Sensitivity 1.4V (for full rated power at 4 ohms)
Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz) > 103 dB
THD <0.5%
Damping Factor (8 ohms, 10 Hz to 400 Hz) >200
Intermodulation Distortion (from full rated output to -30 dB) <0.3%
Frequency Response (at 1W, 20 Hz - 20 kHz) 0 dB
Crosstalk >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
Dimensions 19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)
Weight 8.3 lbs (3.75 kg)
Shipping Weight 10.7 lbs (4.85 kg)
IEC Power Connector 15A
