Cameo Root Bar 6

16 x 12 W RGBAW + UV-LED Bar

Compact LED bar available in three versions
Flexible positioning at various angles, with or without feet
Magnetic Quick Alignment System for precise alignment of multiple units

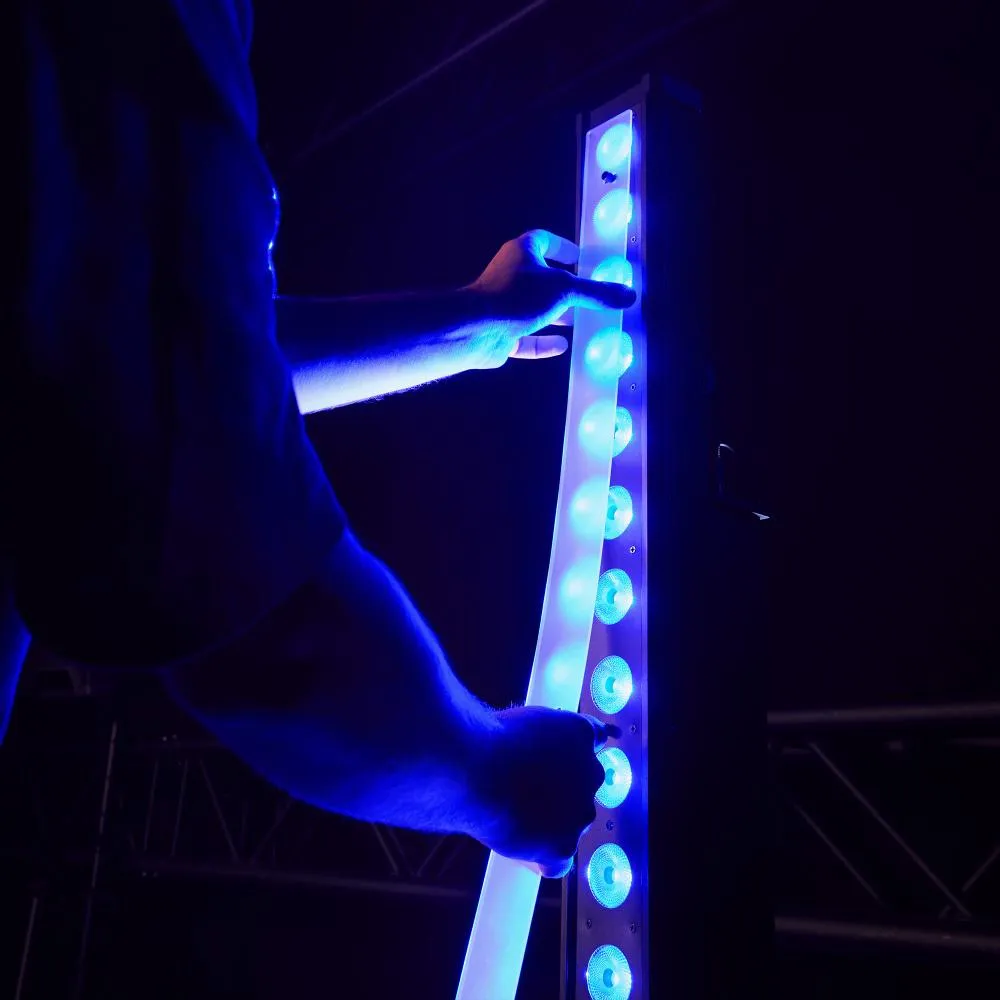

Includes frost filter, neon tube filter, and glare shield for versatile lighting effects
Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
Patented EZchase® DMX delay function for chase effects
16-bit resolution for smooth dimming and high-performance RGBWA-UV LEDs
Power input via Seetronic and DMX connectors for daisy-chaining multiple units
Silent, fanless cooling design ideal for noise-sensitive environments

Illuminant type LED RGBWA+UV
LED data 16 x 12 W LED RGBWA+UV (4 x 4)
Luminous flux 6,000 lm
Beam/Field angle 19° / 36°
LED PWM frequency 650 Hz, 1,530 Hz, 2,000 Hz, 4,000 Hz
Dimmer resolution 16 Bit
Colour mix functions RGB
LED colours Red, Green, Blue, White, Amber, Ultra violet
Controller protocols DMX512
Additional DMX features DMX delay, LED segment dimmer, System settings
Stand alone operating modes Sound controlled, Autorun, Master/slave, Static, Endless loop
Data in connector XLR 3-pole male
Data out connector XLR 3-pole female
Width 1,026 mm
Height 157 mm
Depth 105 mm
Weight 5 kg
