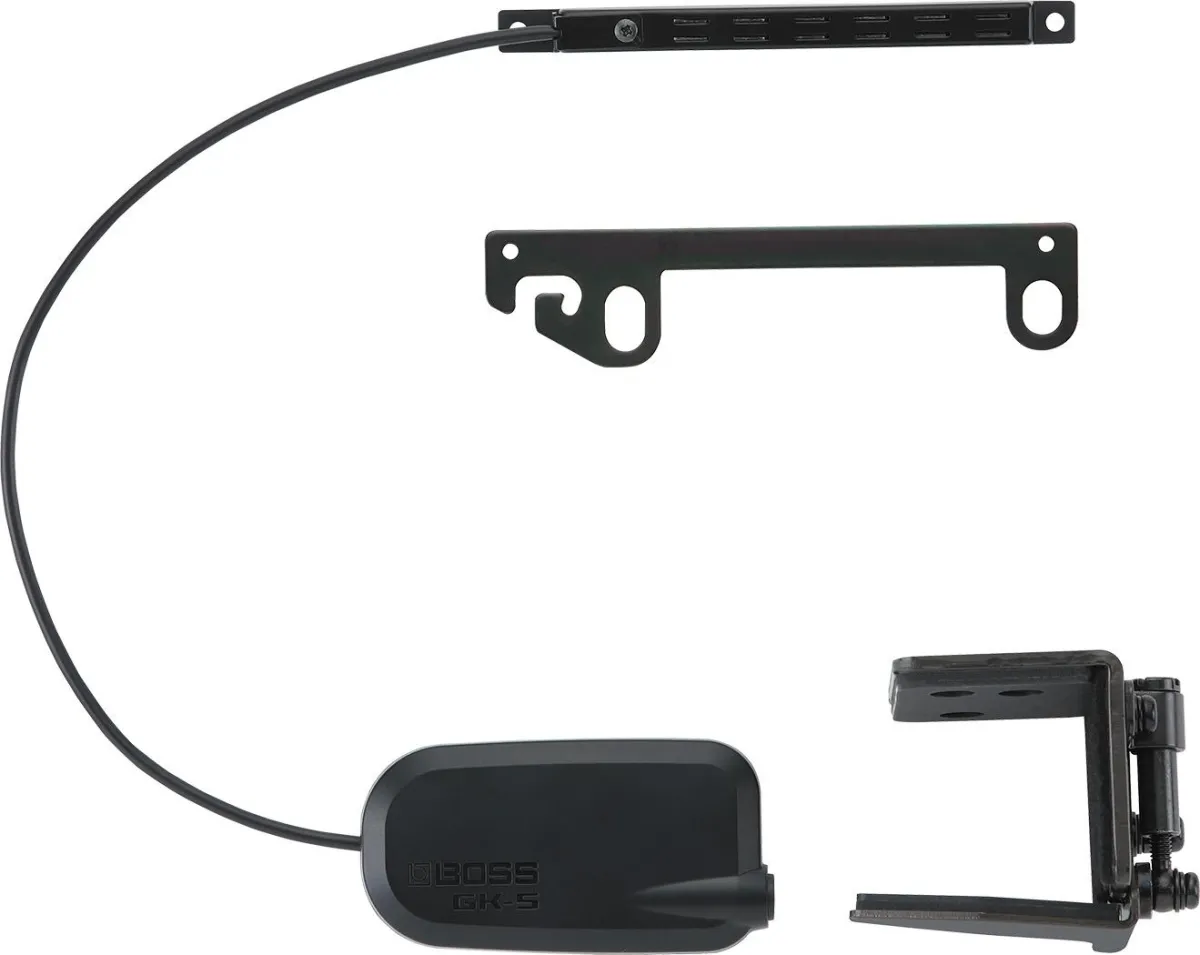

BOSS GK-5

Next-Generation Divided Guitar Pickup for BOSS Guitar Synthesizers
The GK-5 is a user-installable guitar pickup designed for the advanced Serial GK digital interface found in the latest BOSS guitar synthesizer products. Offering improved performance over the previous analog 13-pin interface, Serial GK opens a universe of new sonic possibilities in guitar and bass synthesis.

Standard Features
Next-generation divided pickup for guitars with steel strings
Supports the Serial GK interface used in the latest BOSS guitar synthesizer products
Stable digital signal transmission
Light and streamlined connector housing with a lower profile than previous GK pickups
Flat, slimline pickup fits on most standard electric guitars
Includes an attachment plate for the bridge on Les Paul-style guitars
Connector housing mounts securely to the instrument’s strap button with the included bracket
Specially designed BOSS Serial GK cables (BGK series) available for stable and accurate operation with your Serial GK product

Expand Your Creative Range with a BOSS Divided Pickup
The GK-5 Divided Pickup is a specialized guitar pickup designed for the GM-800 and other BOSS guitar synthesizer products. Unlike standard guitar pickups—which send all string signals to a combined output—the GK-5 senses each string individually, sending their signals to separate outputs within the Serial GK system. This isolated string information allows your compatible BOSS product to perform all sorts of advanced processing feats not possible with standard pickups.

About the Next-Generation Serial GK System
Serial GK is a new digital instrument interface developed for BOSS guitar synthesizers. It features a secure, space-saving connection that offers a lower profile than previous GK products. BOSS BGK series cables are specially designed for optimum performance with the Serial GK system, and they’re more durable and easier to handle than 13-pin analog cables.

SPECIFICATIONS

ConnectorGK OUT jack: 1/4-inch TRS phone type (for BGK cable only)AccessoriesMounting Parts Set
Owner’s Manual
Leaflet NotesOptions (sold separately)Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)SIZE AND WEIGHT (BODY)Width38 mm
1-1/2 inchesDepth73 mm
2-7/8 inchesHeight16 mm
41/64 inchesWeight30 g
1.1 ozSIZE AND WEIGHT (PICKUP)Width103 mm
4-1/32 inchesDepth8 mm
21/64 inchesHeight9 mm
23/64 inchesWeight10 g
0.04 oz
