Boss EX-4 Effects Expander

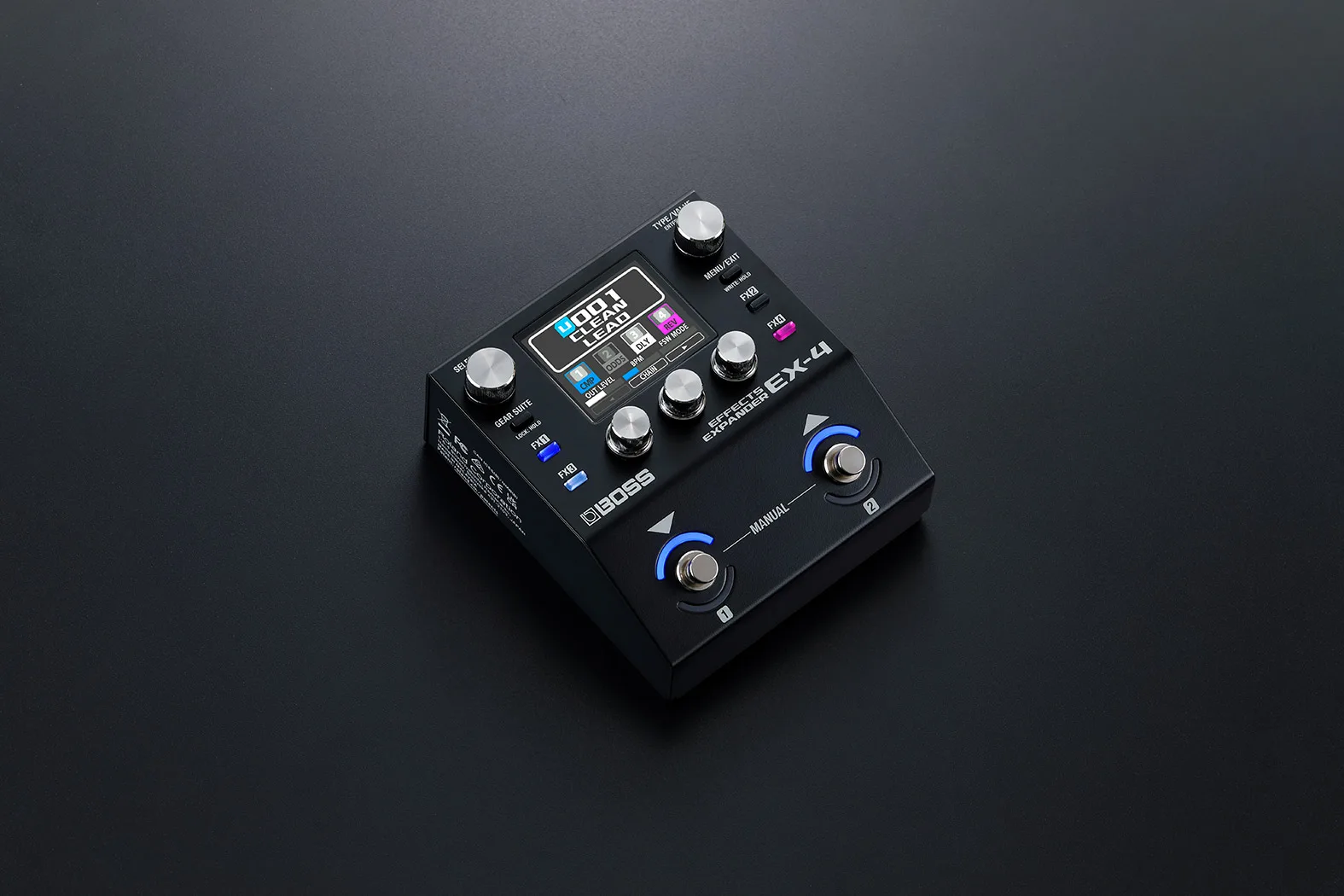

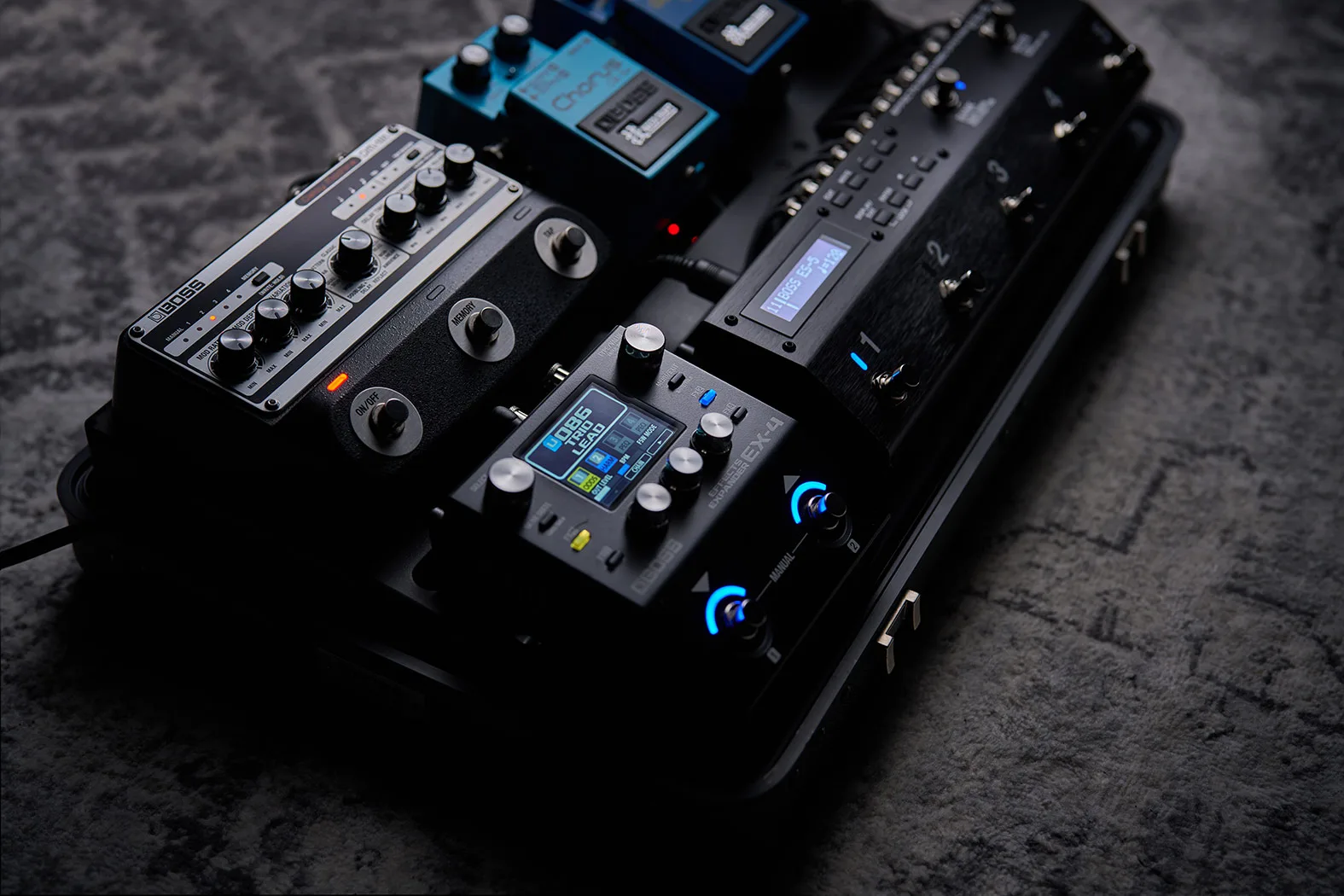

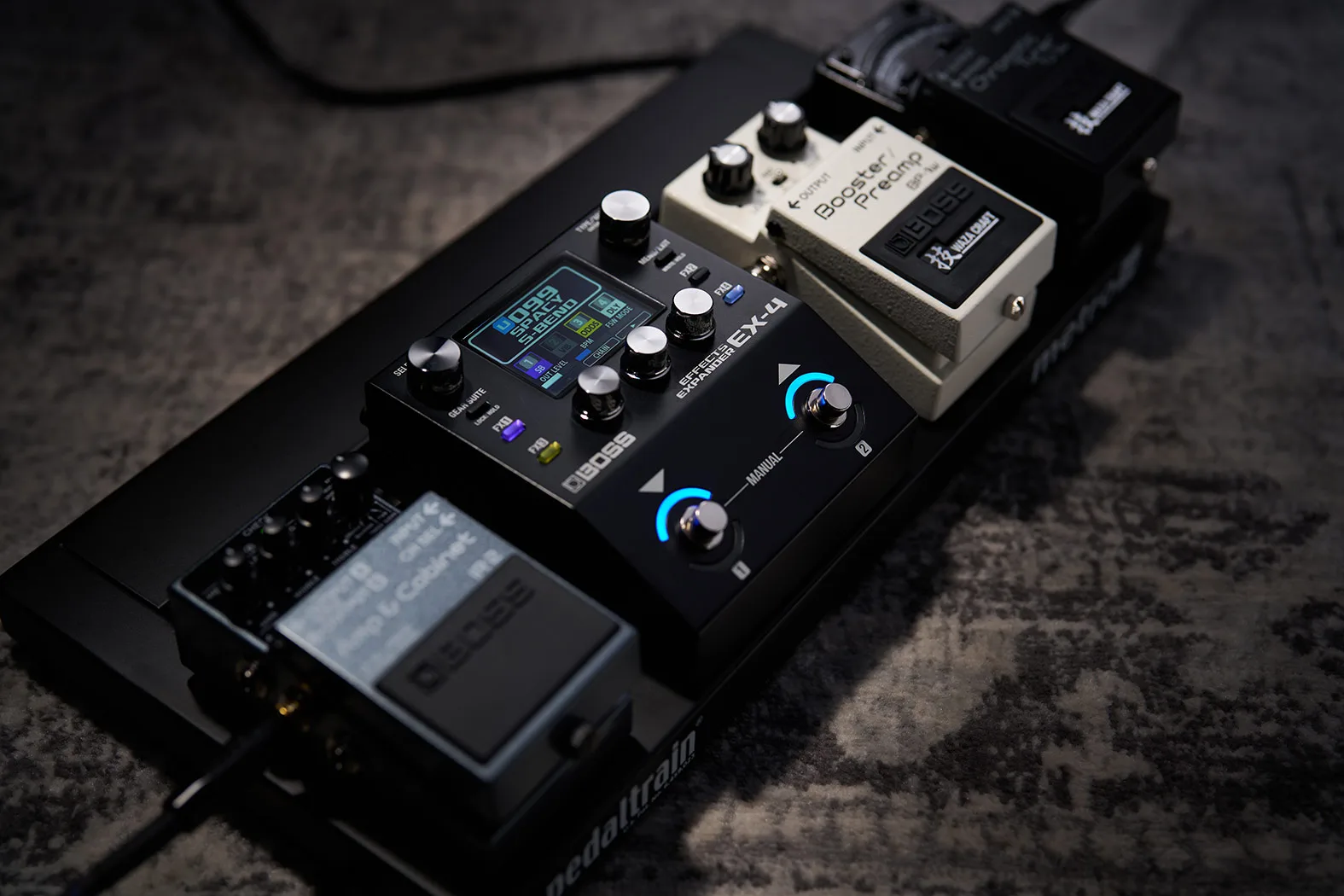

The BOSS EX-4 is a compact effects processor designed to expand the capabilities of your existing pedalboard without replacing your current setup. With 120 BOSS effects, flexible signal routing and real-time control options, it provides a wide range of sound-shaping possibilities for guitar and bass.

Up to four effects can run simultaneously, including multiple instances of the same effect. Dedicated utility blocks include foot volume, two noise suppressors, send/return and divider/mixer functions, while a global EQ provides independent overall sound shaping.

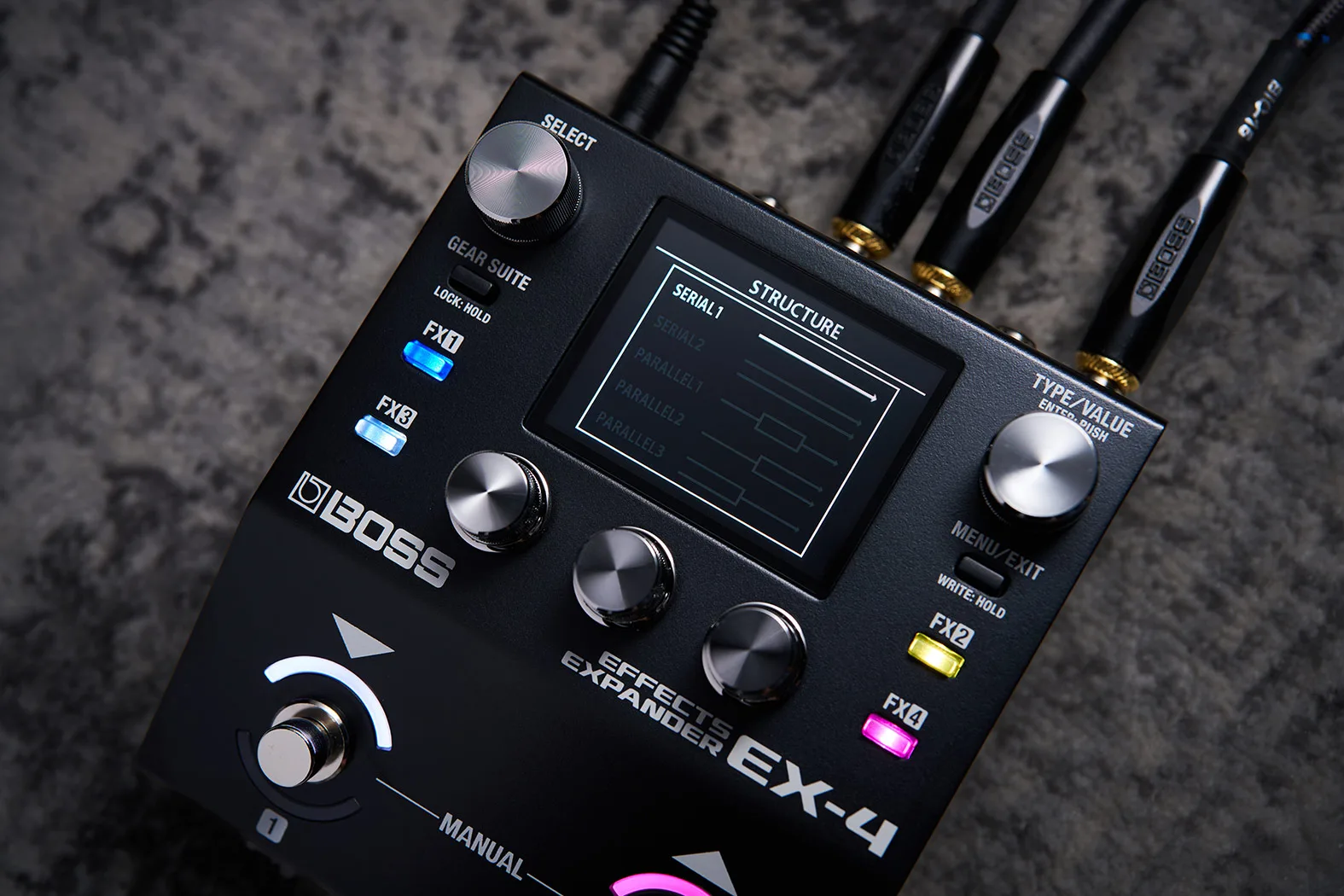

The EX-4 features a 2.4-inch color graphic display, dedicated FX buttons and intuitive controls for fast editing. The Gear Suite function provides ready-to-use effect configurations with professionally tuned parameters, which can also be edited and saved for later use.

Dual multi-function footswitches with color LEDs can be configured for effect on/off, memory selection, master bypass, tap tempo, parameter control and other functions. Manual and Memory modes allow either stompbox-style operation or preset-based control, with 128 user memories and 128 preset memories.

Flexible mono/stereo I/O and an effect loop allow external pedals to be placed anywhere within the EX-4's signal chain. TRS MIDI connections provide integration with other MIDI equipment, while seamless memory changes with delay and reverb carryover are possible with certain effect configurations.

Features
Compact Effects Processor For Pedalboards
120 BOSS Effects
Up To 4 Simultaneous Effects
Multiple Instances Of The Same Effect Supported
Dedicated Utility Blocks
Global EQ
Gear Suite For Fast Effect Configuration
2.4-Inch Color Graphic Display
Dual Multi-Function Footswitches With Color LEDs
Manual And Memory Modes
128 User Memories And 128 Preset Memories
Series, Parallel And Wet/Dry Signal Routing
Flexible Effect Loop
Mono/Stereo I/O
TRS MIDI I/O
USB Type-C Port

Specifications
Sampling Frequency: 48 kHz
AD Conversion: 24 bits + AF method
DA Conversion: 32 bits
Processing: 32-bit floating point
Effects: 120 types
Maximum Number Of Effects: 4 (FX1-4) + 6 utility blocks
Memories: 128 User + 128 Preset
Nominal Input Level: -10 dBu
Maximum Input Level: +7 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -10 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Display: Color Graphic LCD, 320 × 240 dots
Current Draw: 300 mA
Power Supply: AC adaptor, PSA-S series

Connectors
INPUT L/MONO: 1/4-inch phone type
INPUT R/RETURN: 1/4-inch phone type
OUTPUT L/MONO: 1/4-inch phone type
OUTPUT R/SEND: 1/4-inch phone type
MIDI IN: Miniature phone type
MIDI OUT: Miniature phone type
CTL1([3]), 2([4])/EXP: 1/4-inch TRS phone type
USB: USB Type-C
DC IN

Controls
DOWN/1 Switch
UP/2 Switch
MENU/EXIT Button
GEAR SUITE Button
FX1 Button
FX2 Button
FX3 Button
FX4 Button
SELECT Knob
TYPE/VALUE Knob
1-3 Knobs

In The Box
Startup Guide
Read Me First Leaflet
PSA-S Series AC Adaptor
Rubber Feet × 4

Options
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: FV-500L, FV-500H, EV-30, Roland EV-5
TRS/MIDI Connecting Cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Dimensions & Weight
Width: 11.7 cm
Depth: 13.8 cm
Height Without Rubber Feet: 6.3 cm
Height Including Rubber Feet: 6.5 cm
Weight: 0.8 kg
