Audient Horizon 8P

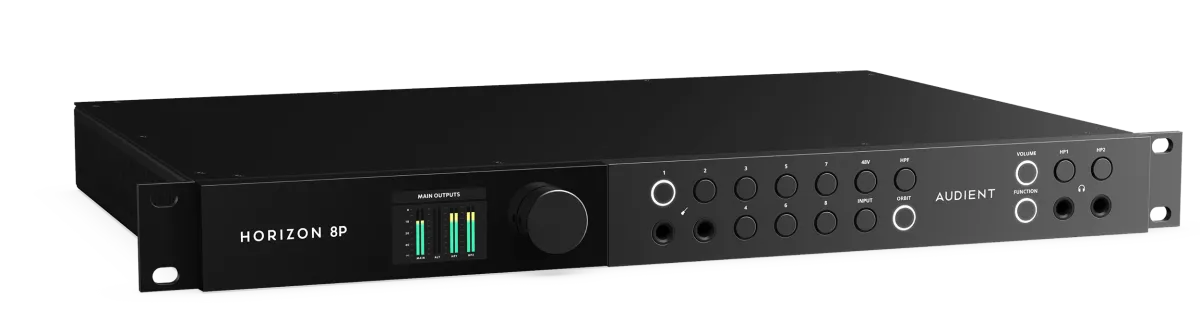

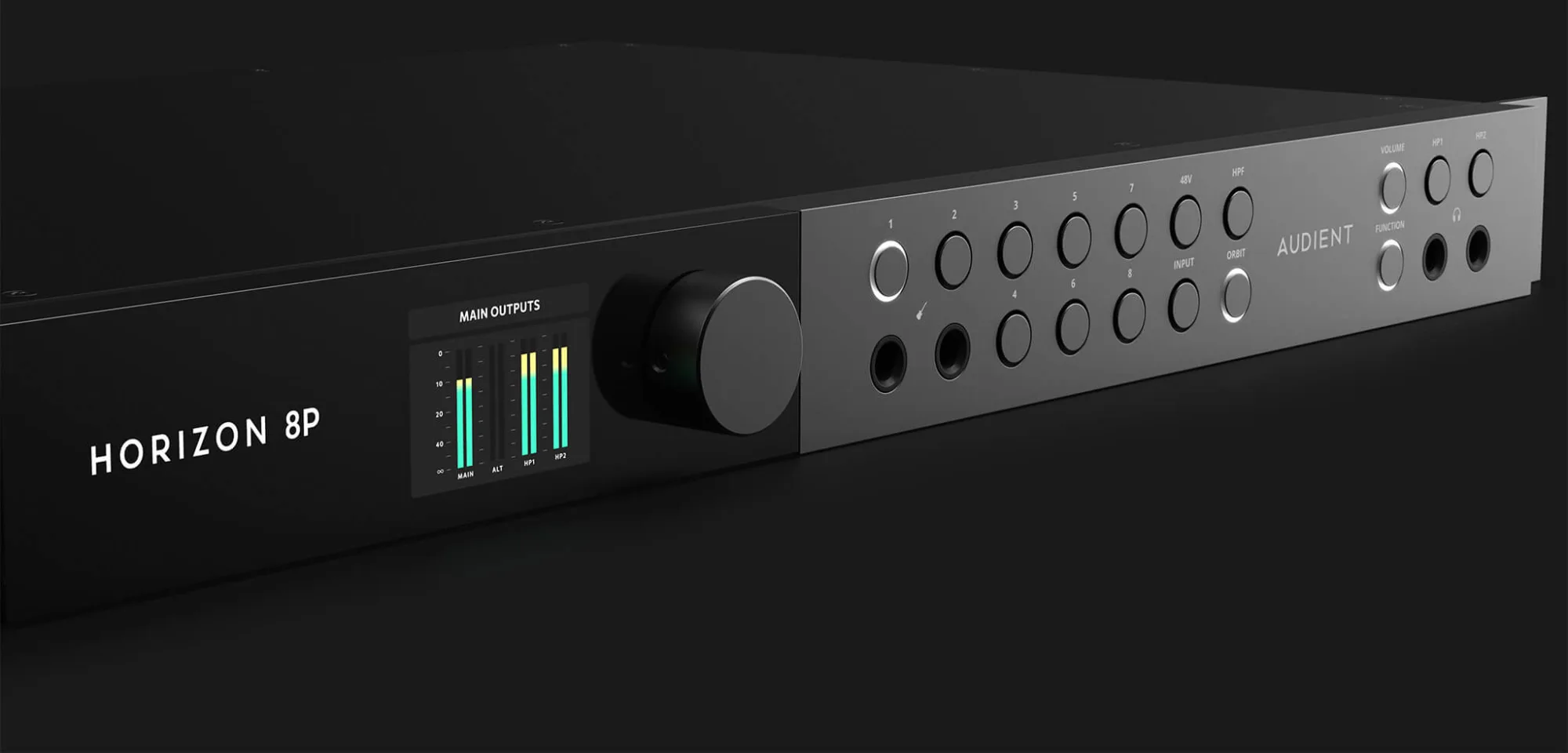

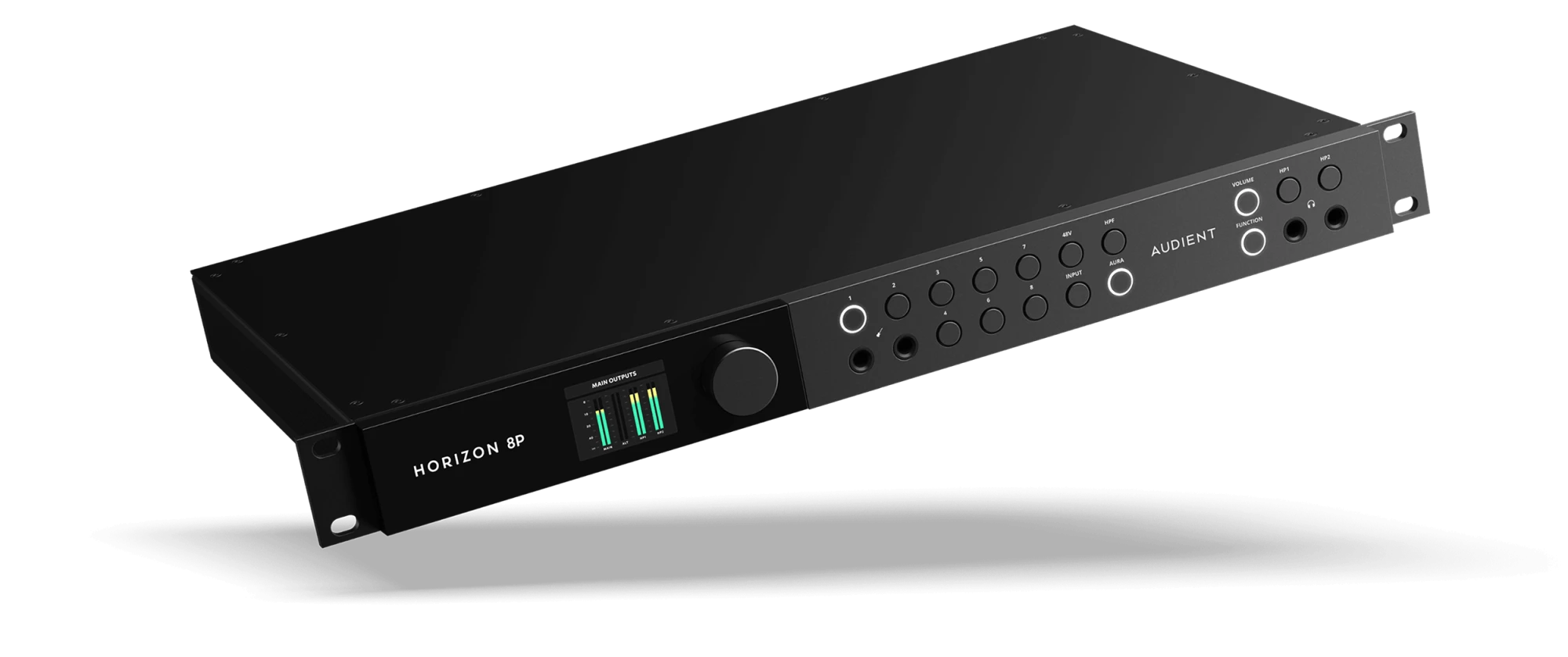

AUDIENT HORIZON 8P – 8-Channel Mic Preamp and Thunderbolt 3 Audio Interface

AUDIENT HORIZON 8P is a 24-in/32-out Thunderbolt 3 audio interface with eightAudient Console mic preamps and ORBIT Control variable impedance. With 32-bit conversion, 133 dB dynamic range and 0.99 ms round-trip latency, it provides a complete tracking front end in a 1U chassis.

Mic Preamps and Inputs
8 x Audient Console mic preamps
75 dB gain
Digital recall
ORBIT Control variable impedance
3 selectable voicings: high, mid and low
2 x JFET instrument inputs on channels 1 and 2
8 x line I/O via DB25 for outboard and hybrid mixing

Audio and Conversion
24-in / 32-out connectivity via Thunderbolt 3
32-bit / 192 kHz conversion
Dynamic range: 133 dB
Round-trip latency: 0.99 ms at 192 kHz and 64-sample buffer
macOS, up to 192 kHz

Digital Expansion
Dual ADAT I/O
16 channels of digital expansion

Monitoring and Headphones
Dual speaker outputs for A/B monitoring
Dual headphone outputs
Hardware monitor control
Mono
Polarity
Dim
Talkback
Reference level
Selectable reference levels: +18 dBu and +24 dBu

Horizon Control
Routing matrix
Custom monitoring
4 cue mixes

Scalable Architecture

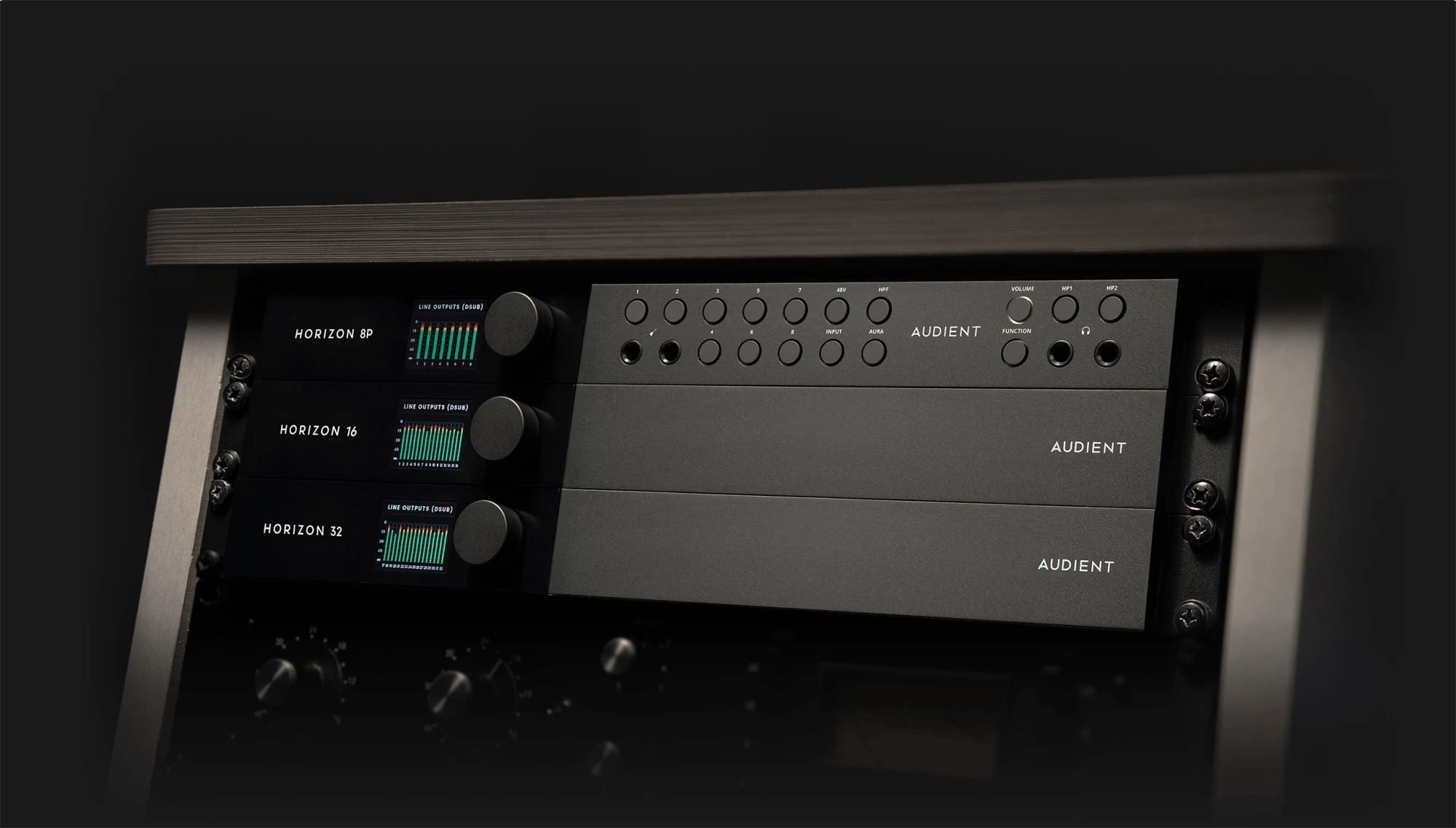

Daisy-chain up to four Horizon units on a single driver
System maximum of 200 x 200 I/O

Construction
1U all-metal chassis
BNC word clock I/O
Three-year warranty
