Audac MFA208

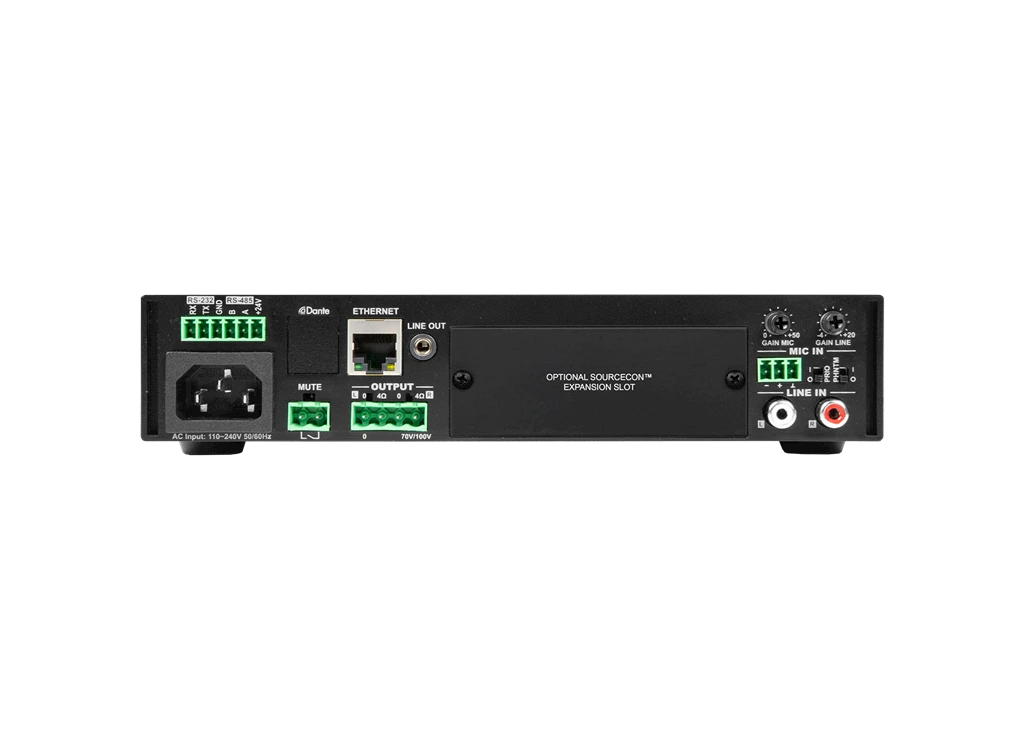

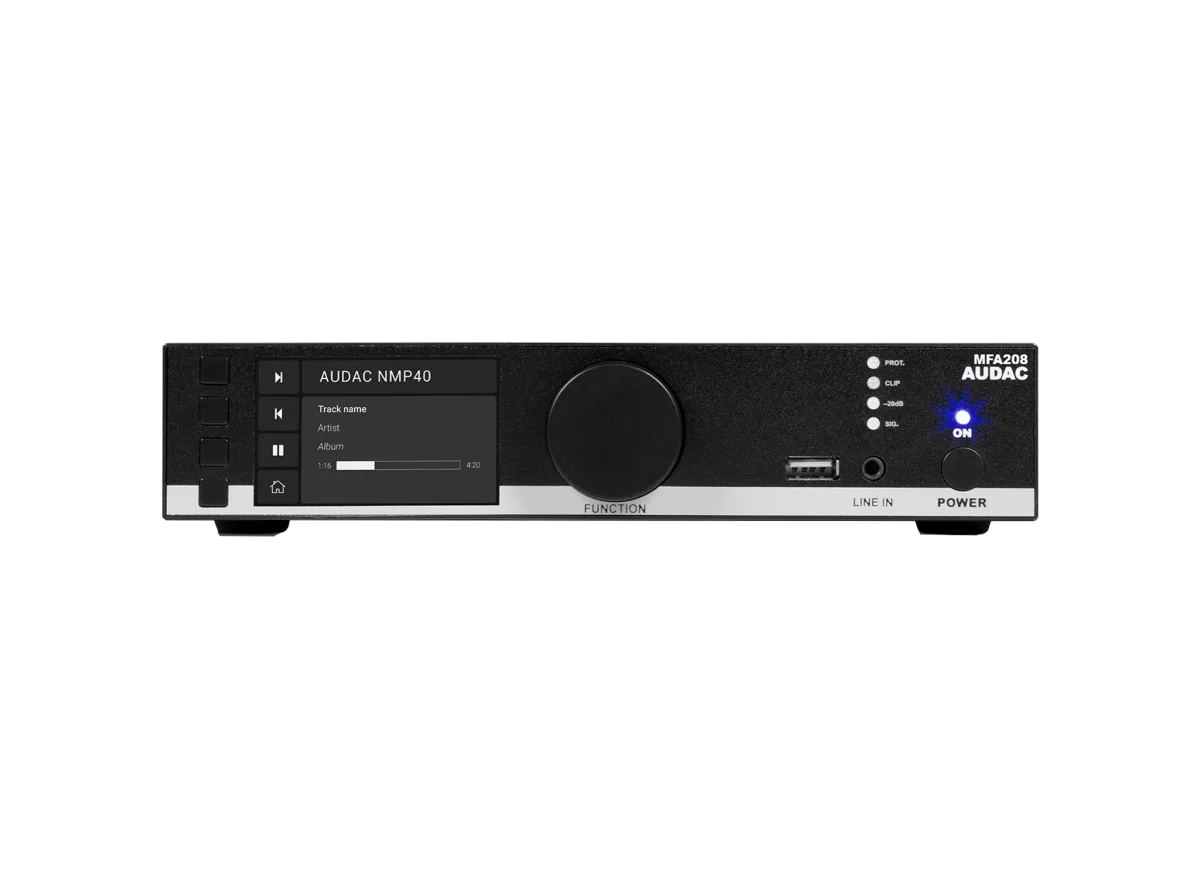

Audac MFA208 – All-in-One Mixer Amplifier

The Audac MFA208 is a Class D all-in-one mixer amplifier with two separate stereo outputs and support for both low-impedance systems and 70V/100V line systems. It features an integrated SourceCon™ module slot, balanced microphone/line input, DSP functions and extensive options for external control and system integration.

Features and Specifications
Class D mixer amplifier
2 x 40 W at 4 / 8 / 16 ohms
1 x 80 W at 70 V / 100 V
2 separate stereo outputs
1 x unbalanced line output via 3.5 mm jack
Line-Out can operate as an independent zone output
SourceCon™ module slot for compatible Audac media player modules
1 x balanced microphone/line input
Microphone input with gain adjustment from 0 dB to -50 dB
15 V phantom power
TalkOver and priority function for announcements
1 x stereo line input via RCA on the rear and 3.5 mm stereo jack on the front
Using the front line input disconnects the rear line input
Only one of the Module / Line input sources can be used at a time for both outputs
Separate 7-band EQ for microphone and line inputs
Individual volume control for microphone and line inputs
Separate 7-band EQ for power amplifier output and line-out
HI/LO-pass active crossover filter with 12 dB/24 dB slopes
Separate priority and TalkOver settings for the outputs
Control via NCP105 wall panel, RS232, RS485 or TCP/IP
Compatible with AUDAC Touch
Dante-compatible with ANI44XT (optional), DDM ready
Password protection with no, full or partial protection
Half-rack format
Desktop mounting or rack mounting with MBS310 (optional)
One MFA unit can be mounted in a small NPR wall cabinet (half-rack)
Two MFA units can be mounted side by side in a 19" rack
Conventional cooling
Voltage: 110–240 V / 50–60 Hz
Signal-to-noise ratio: > 90 dB
Low-impedance output 4 / 8 / 16 ohms: 2 x 40 W @ 1 kHz / THD 1%
70 V / 100 V line system output: 1 x 80 W @ 1 kHz / THD 1%
Microphone input: 1 x balanced Euroblock terminal
Line input: RCA (rear) and 3.5 mm stereo jack (front)
Suitable cable/line-out: Procab CLA833
Dimensions (W x H x D): 217.5 x 43.7 x 300 mm
Weight: 2.20 kg
