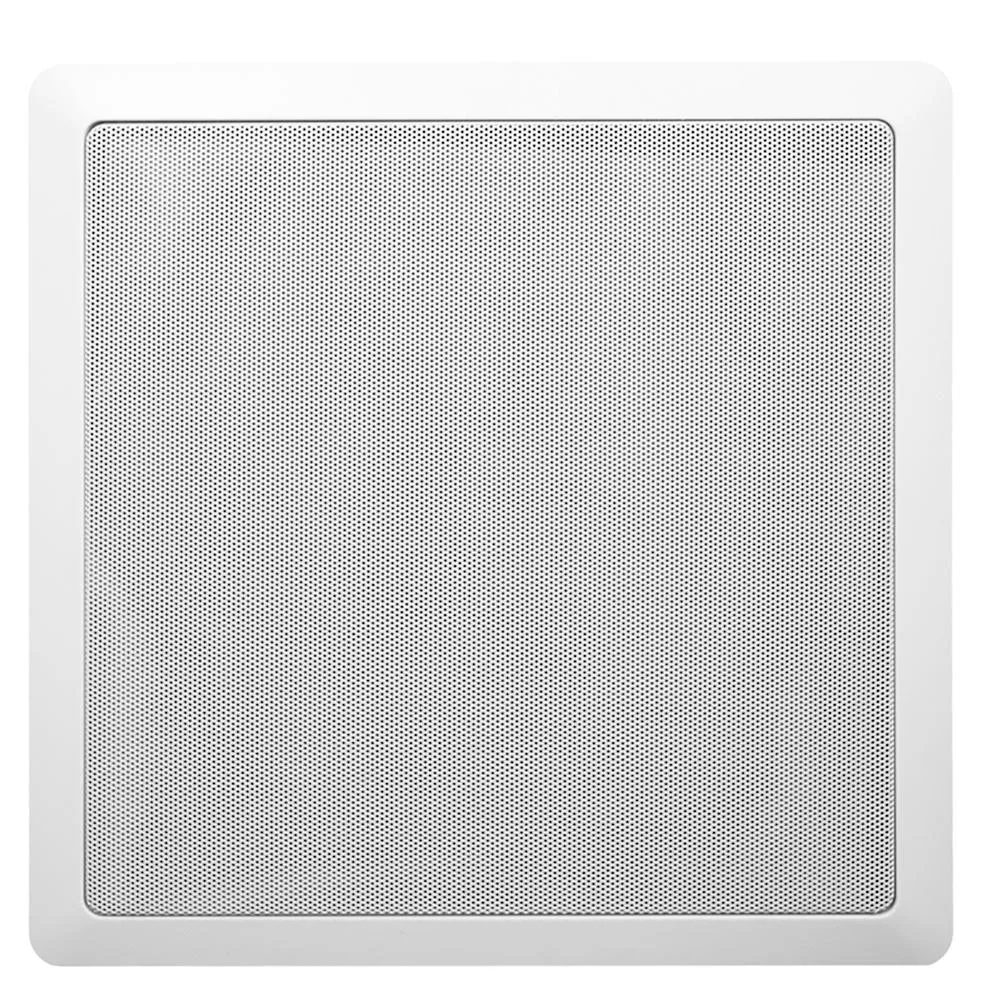

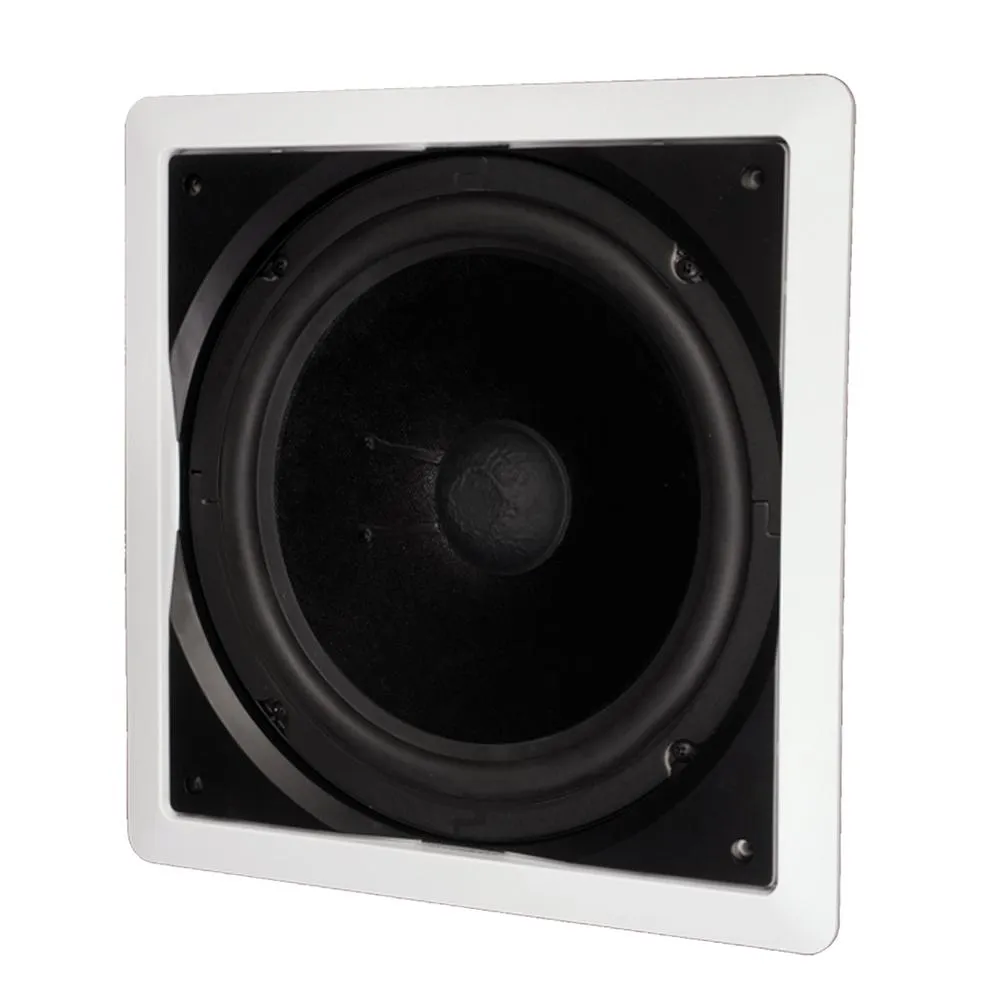

Audac CS1000S

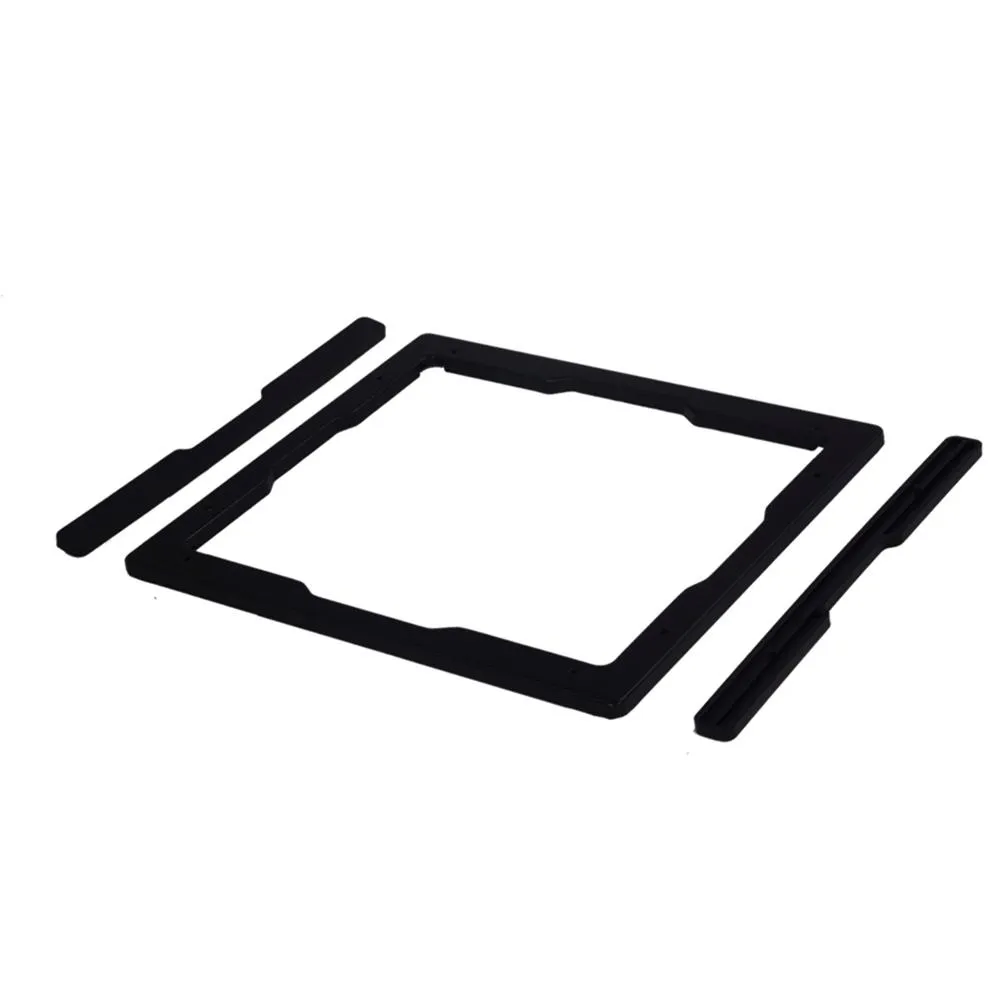

In addition to the CS series, AUDAC created the CS1000 10" in-wall/ceiling subwoofer speaker with a super slim design. With a built-in depth of merely 104 mm, you can fit the CS1000 into almost every wall or ceiling, and as all other CS speakers, the CS1000 can be painted to blend in with the structure the speaker is built-in. The CS1000 has a superb reproduction of the low frequencies and therefore is ideal to use in combination with your WS series in-wall or CS ceiling speakers. The CS1000 is made of strong ABS and equipped with the necessary installation clamps for easy mounting. The cone of the speaker is treated to be completely moisture proof, so it can also be used in damp rooms or outside applications. The CS1000 features a 10" low frequency range woofer with an output power of 100W RMS @ 8 Ohm and a maximum power of 200W. It can produce a sound pressure level up to 114 dB and has a stunning frequency response of 28 Hz to 300 Hz, which is really low sound.

Freq. Response -3 db 50 - 250 Hz
Freq. Response -10 db 28 - 300 Hz
Power RMS @ 8 Ohm 100 Watt
SPL 1m/1w 88 dB
Calculated RMS Pres. 108 db
Horizontal coverage 180°
Vertical coverage 180°
LF driver 10 inch
Crossover freq. 250 Hz
Impedance 8 Ohm
Weight net 2,6 kg
Dimensions (W x D) 304 x 304 mm
Cut out dimensions 270 x 270 mm
Build-in hight 104 mm
Shipping weight 104 mm
Shipping size 0,013 Cbm
Colour white
