AMP CSB-45M CAT Break Out Box XLR Male

The CSB-45 series is designed for simple, lossless audio signal transmission. It supports the transmission of 4-channel audio signals through a single CAT cable and enables phantom power pass-through. The series is capable of transmitting AES/EBU and DMX signals over distances of up to 100m, with impedance optimized for digital signal integrity. Existing STP cable infrastructures can be utilized, or new installations can be upgraded by selecting higher-category cables for expanded signal transmission.

4-XLR signal lines down a single shielded CAT cable
Transmits 4ch Balanced analog audio or AES/EBU digital audio
Can pass phantom power and DMX for lighting
Uses the analog conductors in any shielded Cat 5 or Cat 6 cable
Analog all the way, with no digital conversion
Constructed of durable anodized aluminum housing
Works within a building's existing cable infrastructure

Specifications

Connection: 4CH

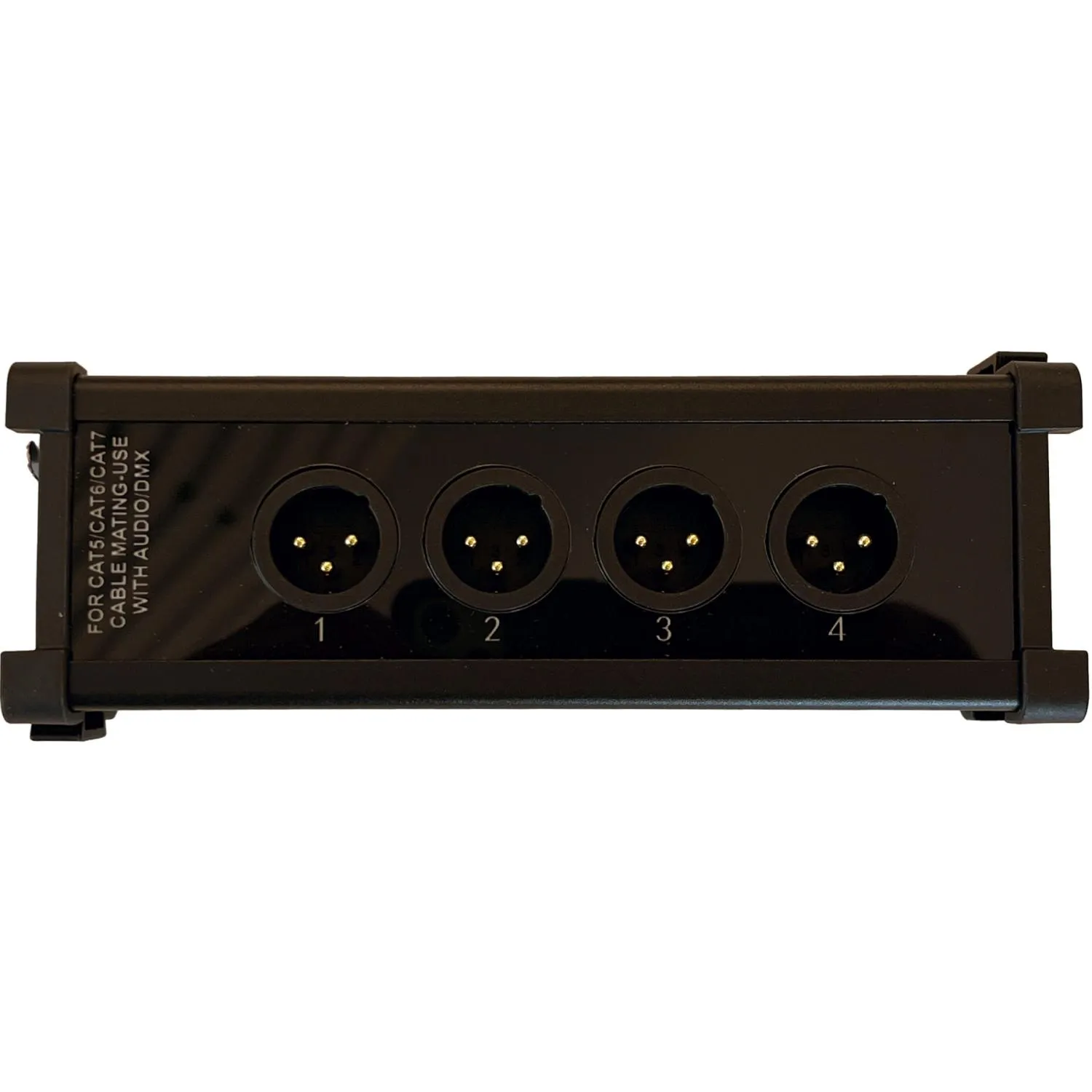

Input Connector: 4 x XLR Male

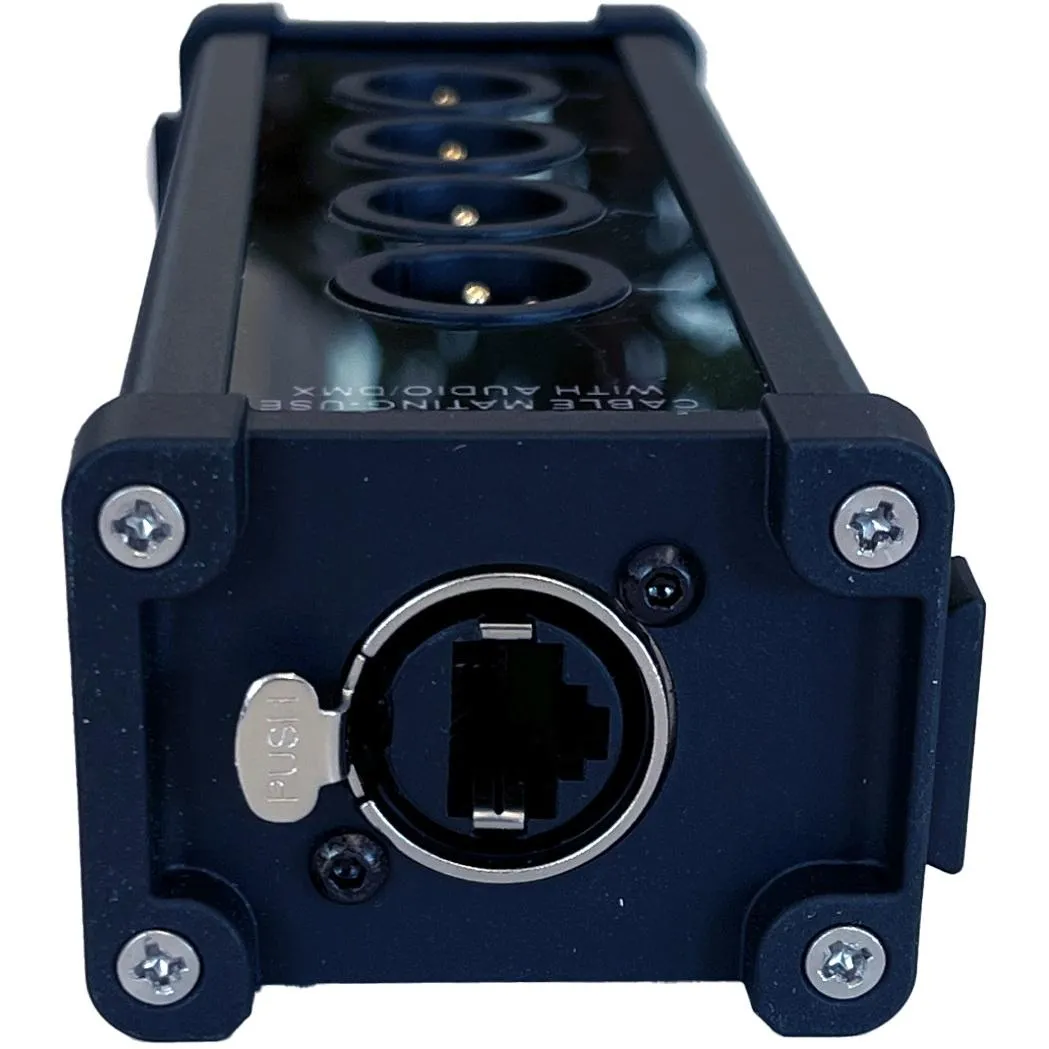

Output connector: 1 x Ethercon male
Cable: Shielded Cat5, Cat6, Cat7
Housing: Anodized alumimum
