American DJ 40 Hex IP Panel

The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. A magnetic, removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.

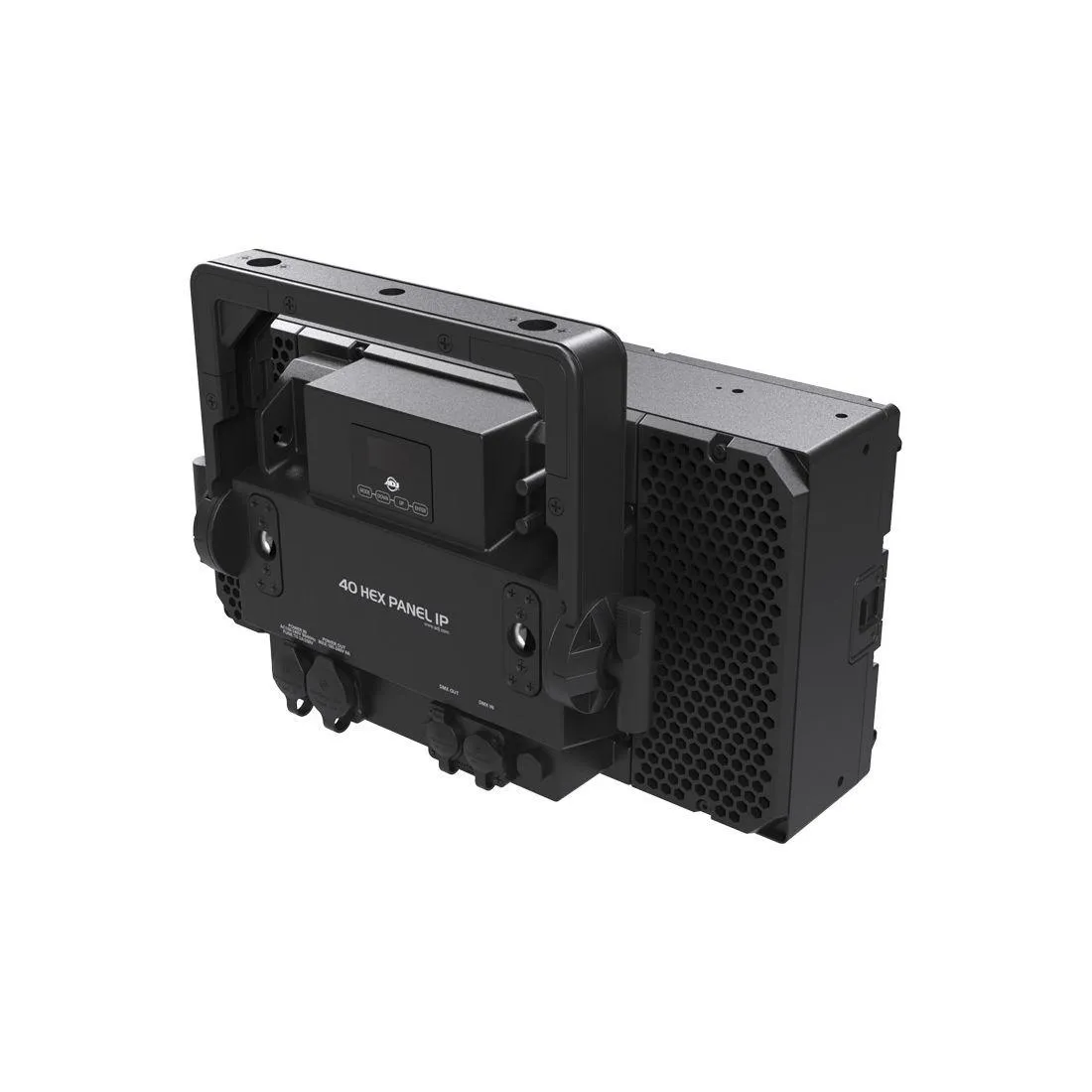

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.

Key Features:

• IP65 rated - protects from dust, sand, moister, water
• Aria X2 Management System
• All-metal construction with black housing
• Includes heavy-duty bracket
• Flicker free for film and broadcast
• Linear variable white temperature control
• LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
• Beam Angle: X = 28.61° , Y = 23.72°
• Field Angle: X = 50.82° , Y = 44.95°
• Lumens: 19,590
• Display: OLED display with function buttons
• All-metal heavy-duty housing built to last in outdoor or touring applications
• 24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes
• 4 Control Groups: 1 / 2 / 5 & 10 Groups
• 0-100% Dimming + smooth 16-bit Dimming
• 5 Dimming Curve Modes
• Control Mode: DMX512, RDM (Remote Device Management)
• LED Refresh Rate: Multiple settings
• With Wired Digital Communication Network
• Data: IP65 Locking 5-pin DMX In/Out
• Power: IP65 Locking Power In/Out
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 492W @220V
• Max Power Link: 4pcs @230V
• Fuse Protected: T4A/250V Glass Fuse (5*20MM)
• Dimensions (LxWxH): 417x296.8x212mm
• Weight: 11.15 kg

Included
• 1 x IP65 Locking Power Cable
• 1 x Frost Filter
• 1 x Safety Cable
