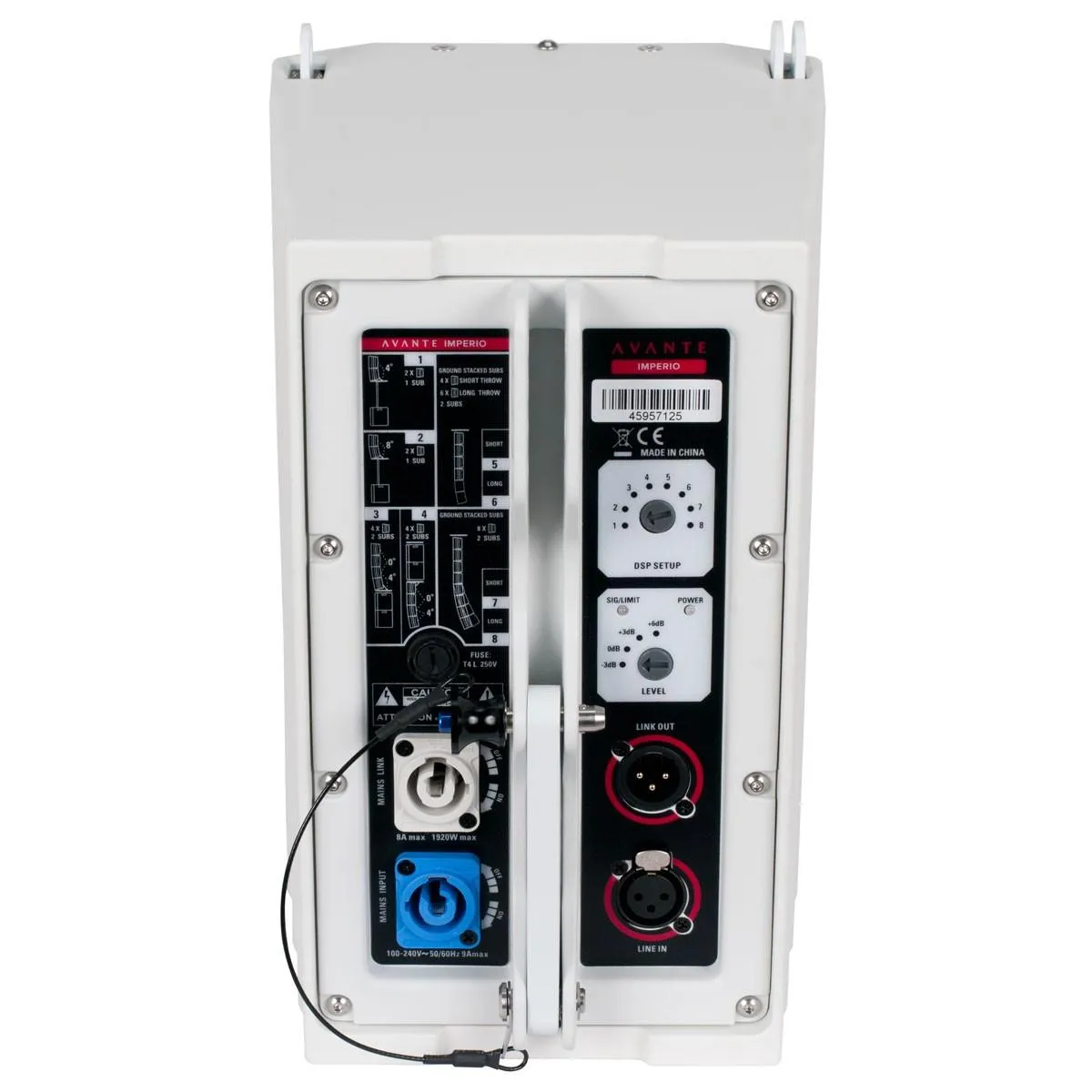

American Audio Imperio White

240W RMS Class D Power Amplifier with dual 4.75" woofers and 6x 1.75 IDVAT (inverted Dome Vertical Array Technology) HF Drivers. Part of the Imperio Mini Line Array Series with White housing.

Specifications :

Speaker
• 2-way active closed Design loudspeaker
• Driver Information:
2x 4.75" Neodymium Woofer with 1-inch voice coil

6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)
• Max Output SPL: 117dB (single box measured on Axis @1m)

Coverage
• Nominal Coverage: 90° x 15°
• Frequency Range (-10db): 150Hz – 20KHz

Construction
• Cabinet: White ABS Plastic
• Grill: 1.0mm steel
• Splay Angles: 0, 4, 8 & 12-degrees
• Integrated Rigging: Yes
• LinkPins for connecting 2 Imperio or pole mounting included.
• 0,6m Locking Power and XLR Link cables included
• Volume: Selectable Input Sensitivity Dial

Amplification
• Amplification Power: 600W Peak
• 2x 120W RMS Class D Amplifier Module
• Switching Power Design
• LED Power / Signal / Clip Indicator
• 24-bit DSP Selectable Configurations
• Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB

Connections
• Signal Input/Output : Locking 3pin XLR
• Power Input/Output: Locking Power

Electrical
• Power Input: 100-240V ~ 50/60Hz

Dimensions & Weight
• Dimensions: (W x D x H) 184.8x224x324mm
• Weight: 6,3 kg
