American Audio Avante AS8

The Achromic AS8 Column PA System is lightweight, portable and feature packed. Offering an impressive output from a very compact column system, it is the ideal choice for live PA, musicians, and mobile entertainers looking for an extremely portable PA setup. The System includes: (1) 8-inch active sub woofer, (1) column speaker with six 2-75-inch speakers, (1) spacer, (1) carry bag for column speakers

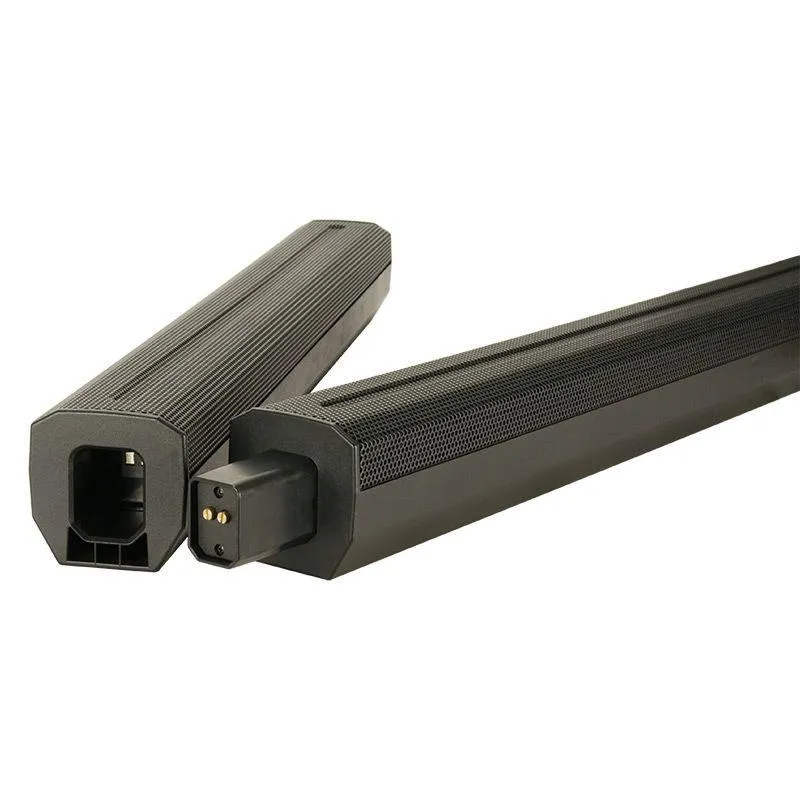

The fully-featured and easy to setup Achromic AS8 system comprises an active 8-inch subwoofer enclosure alongside two column units. One is loaded with six precision-aligned 2.75” speaker cones while the other serves as a spacer to lift the speaker column up to optimal height. Both feature Avante’s new SAM (Secure Array Mount) system which allows the columns to lock securely to the sub and to one another without risk of being toppled over. The SAM connection also passes the audio signal from the sub up to the columns, removing the need for speaker cables, and allows the main column to connect directly to the sub without using the spacer if required, ideal for performances from a high stage.

Featuring a Class D power amplifier with built-in limiter that delivers 800W of power, the sub unit also integrates a flexible three-channel mixer with 2-band EQ. This allows direct connection of line-level audio sources as well as microphones and even a guitar, making the system ideal for acoustic solo performers, duos and even small bands. The unit is also equipped with a Bluetooth audio connection that allows wireless streaming of music from a smartphone, tablet or laptop.

The lightweight system can be easily transported in a small car and is supplied with a padded bag for carrying and protecting the column units. This makes it the perfect system for DJs as well as live musicians playing in small venues such as coffee houses and lounges.

Specifications :

Active vented Subwoofer

• 8-inch neodymium Subwoofer,1.5” voice coil, 28 oz. magnet

• Frequency Response: 55-200Hz

• Max Output SPL: 116dB (at max. amp output)

• Impedance: 4 Ohm

• Cabinet: PP plastic

• Grill: 1.0mm steel

• Dimensions: 350 x 430 x 413mm

• Weight: 13,3 kg.

Passive Full-Range Speaker Column

• Driver: 6x 2.75-inch neodymium drivers

• Frequency Response: 180-20kHz

• Max. output SPL: 120dB

• Impedance: 4 Ohm

• Cabinet: ABS plastic

• Grill: 1.0mm steel

• Dimensions: 96x96x870mm (each column)

• Weight: 6,45 kg. (each column)

System Coverage

• Frequency Range (-10db): 55Hz-20kHz

Construction

• Low/High EQ on Rear

• Bluetooth pairing button

• 3 Line In/MIC Gain Controls

• Transport Handle on top of the SUB

• Column Carrying Bag included

• Optional Avante AS8 SUB Cover (Code 1163900030)

Amplification

• Class D Amplifier Power : 800W Peak

• 1 x 250W RMS Class D

Connections

• 2 x Balanced female XLR/Jack 6.3mm combo Line/Mic Inputs

• 1 x Mini-Jack3.5mm Input

• 2 x Jack 6.3mm Mono Inputs

• Built-In Bluetooth Module

• 1 x Balanced XLR Output

 • IEC Power In

Electrical

• Power Input: 120V/60Hz or 230V/50Hz

Dimensions & Weight

• Dimensions: 350x430x2010mm

• Weight: 26,2 kg.
