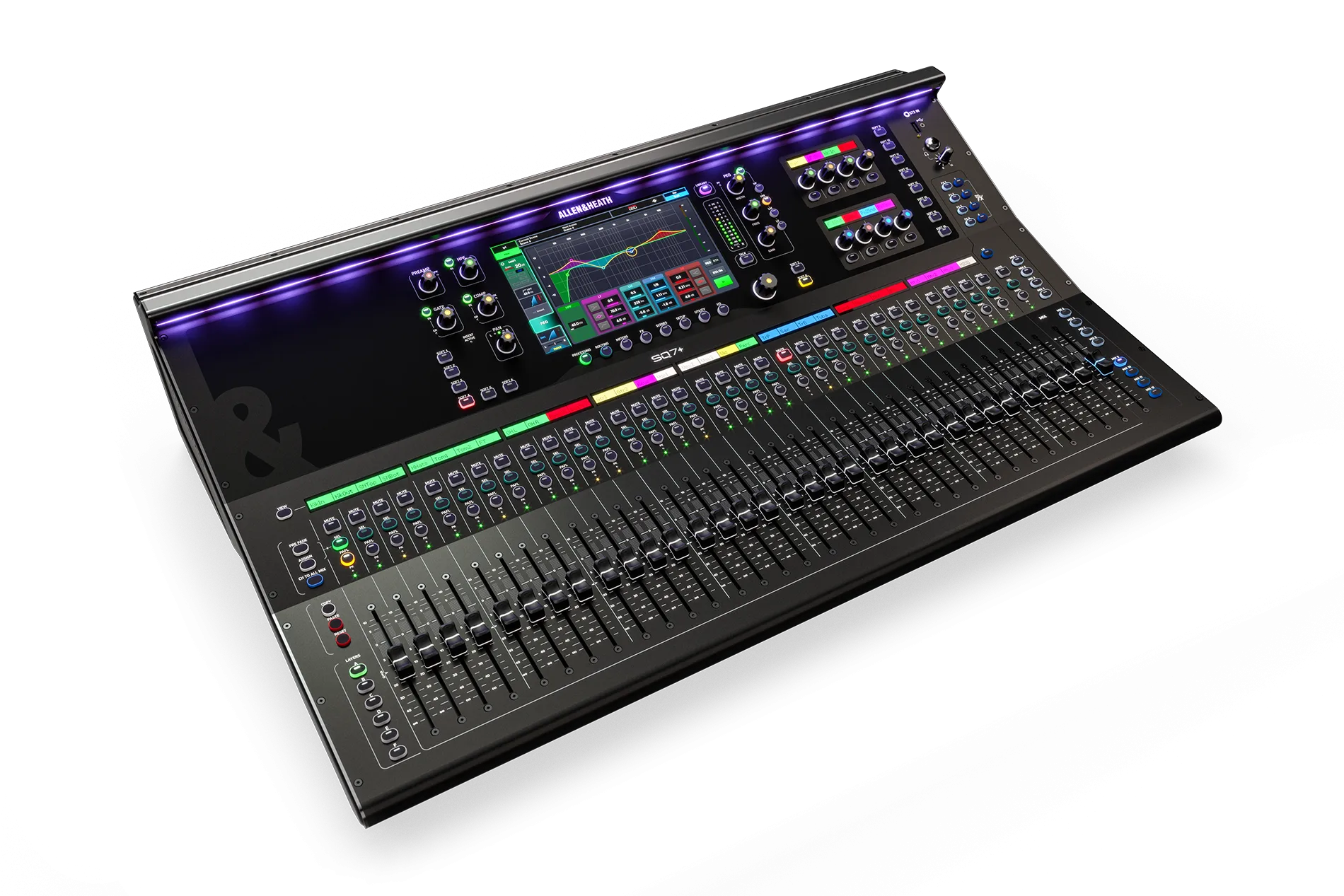

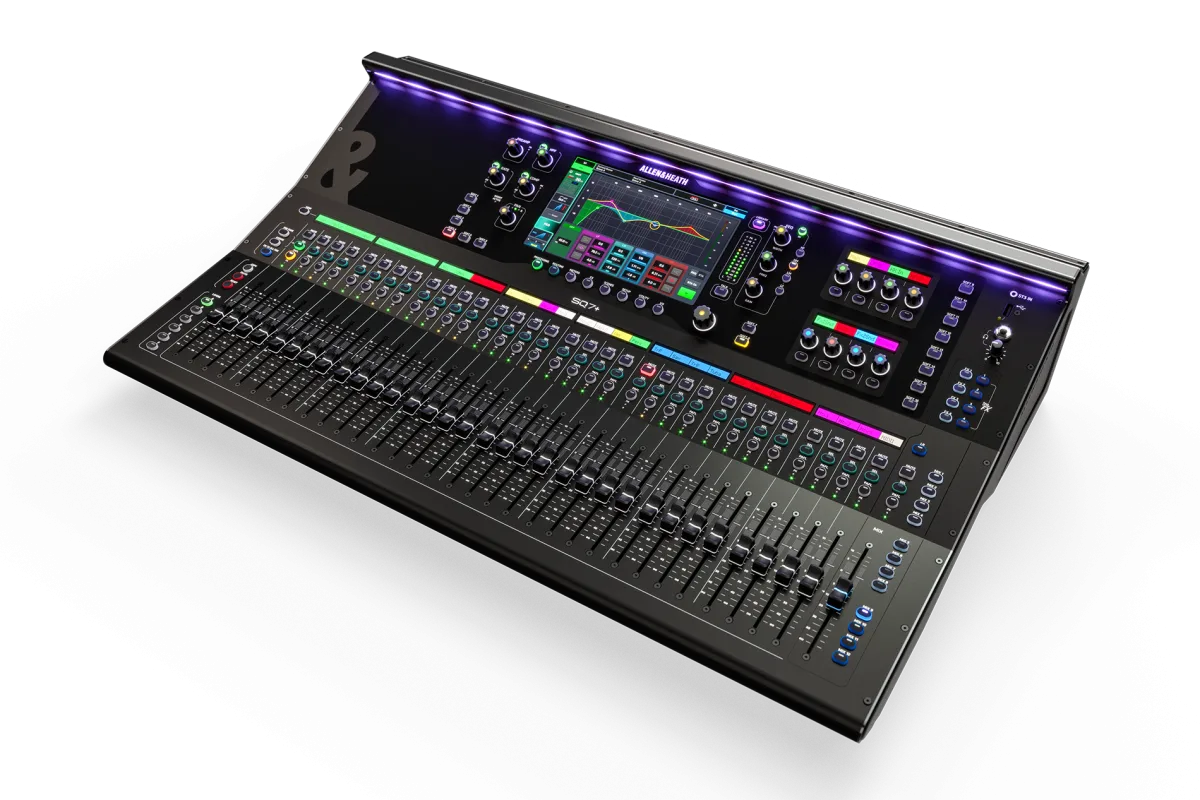

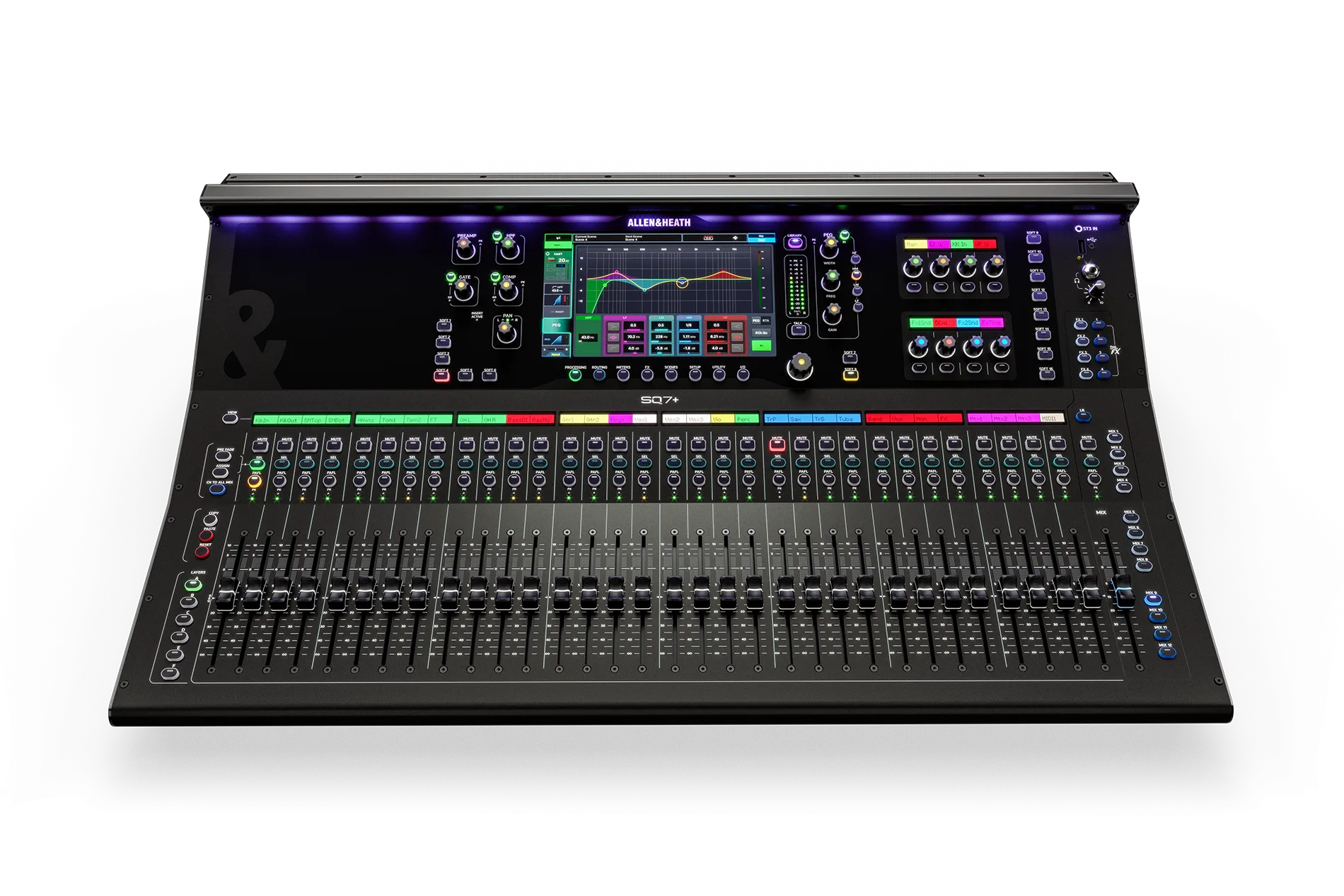

Allen & Heath SQ-7+

The SQ7+ is the flagship model in the SQ+ series, combining a powerful 96 kHz XCVI processing core with extensive physical control and advanced effects processing. Designed for live sound, AV applications and fixed installations, it delivers ultra-low latency, outstanding audio quality and flexible workflow options for demanding productions.

Featuring 33 motorized faders, 16 assignable SoftKeys and 8 SoftRotaries, the SQ7+ provides fast access and precise control for large channel counts and complex mixes. The redesigned 9-inch touchscreen with dark interface improves visibility and workflow during live operation.

The mixer includes 8 RackExtra FX engines and 4 premium RackUltra FX engines with dedicated send and return channels. Full channel processing includes HPF, PEQ, GEQ, compressors, gates and support for DEEP Processing expansions directly within the console.

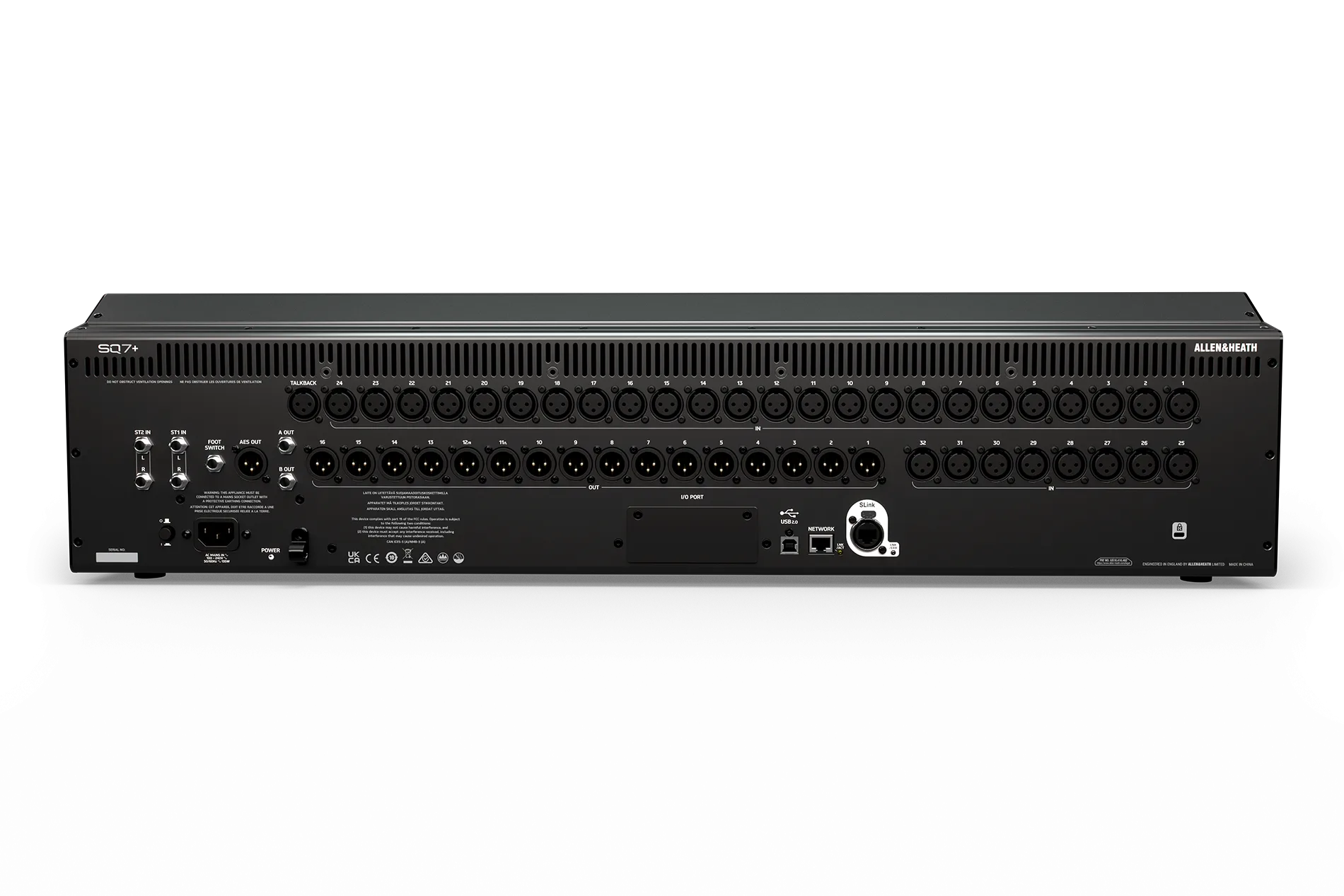

Connectivity is extensive with 32 XLR mic/line inputs, 16 XLR outputs, stereo line inputs, AES3 digital output and a 128x128 intelligent SLink port for expansion and integration with other Allen & Heath systems. USB-A and USB-B ports support multitrack recording, playback and audio interface operation.

Features
48-Channel Digital Mixer
96 kHz XCVI Processing Core
33 Motorized Faders
4 RackUltra FX Engines
8 RackExtra FX Engines
9-Inch Capacitive Touchscreen
128x128 Intelligent SLink Port
USB Multitrack Recording And Playback
DEEP Processing Ready
Remote Control Via Windows, macOS, iOS And Android

Specifications
Input Channels: 48
Main Mix: Stereo LR
Aux/Group Mixers: 12 Stereo
Matrices: 6 Mono/Linkable
Mic/Line Inputs: 32 XLR
XLR Outputs: 16
Stereo Line Inputs: 3
Talkback Input: 1 x XLR
Headphone Output: Stereo
AES Output: 1 x AES3 Stereo Digital Output
USB Audio Interface: 32x32
SLink Port: 128x128 Intelligent SLink
FX Engines: 8 RackExtra FX, 4 RackUltra FX
Sampling Rate: 96 kHz
Dynamic Range: 112 dB
Latency: Less Than 0.7 ms
Power Consumption: 135W

Dimensions & Weight
Dimensions: 514.9 × 804 × 198.5 mm
Weight: 18.42 kg
