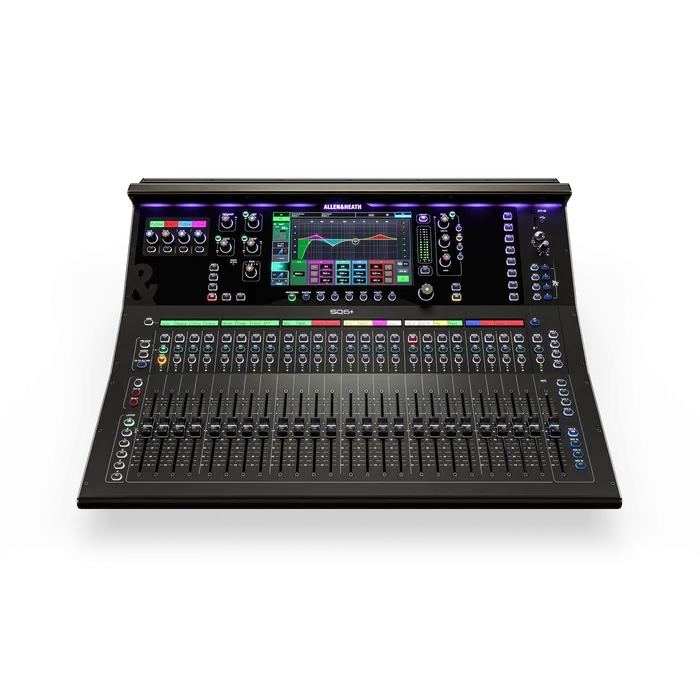

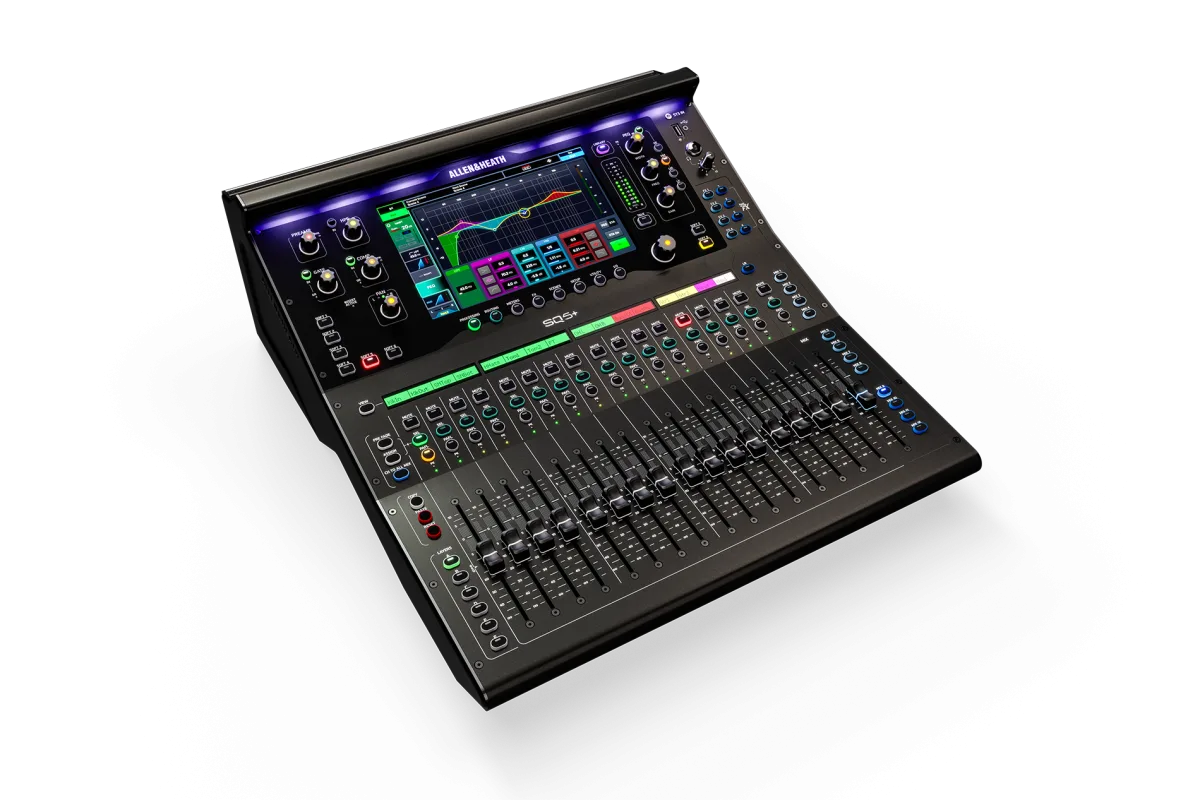

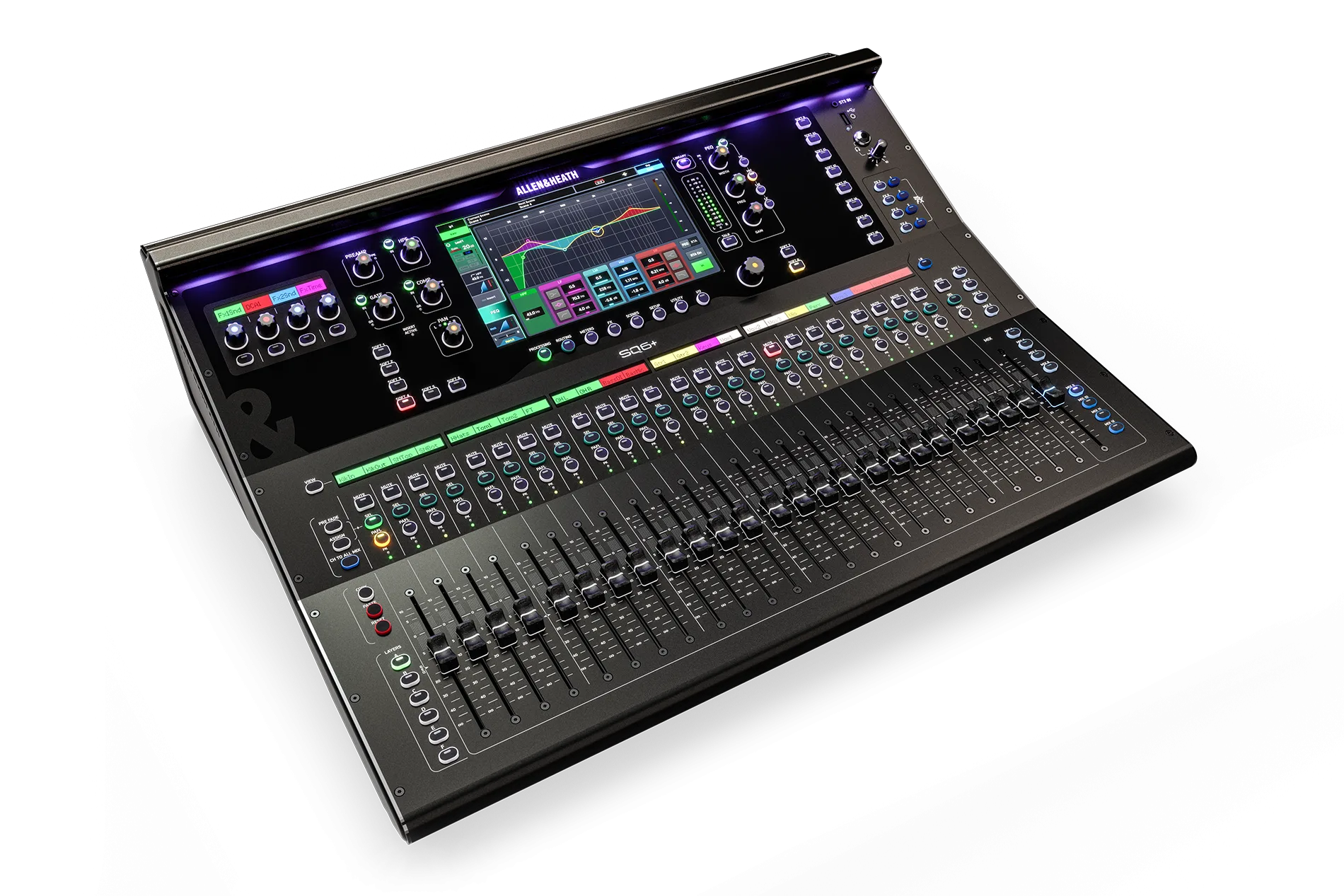

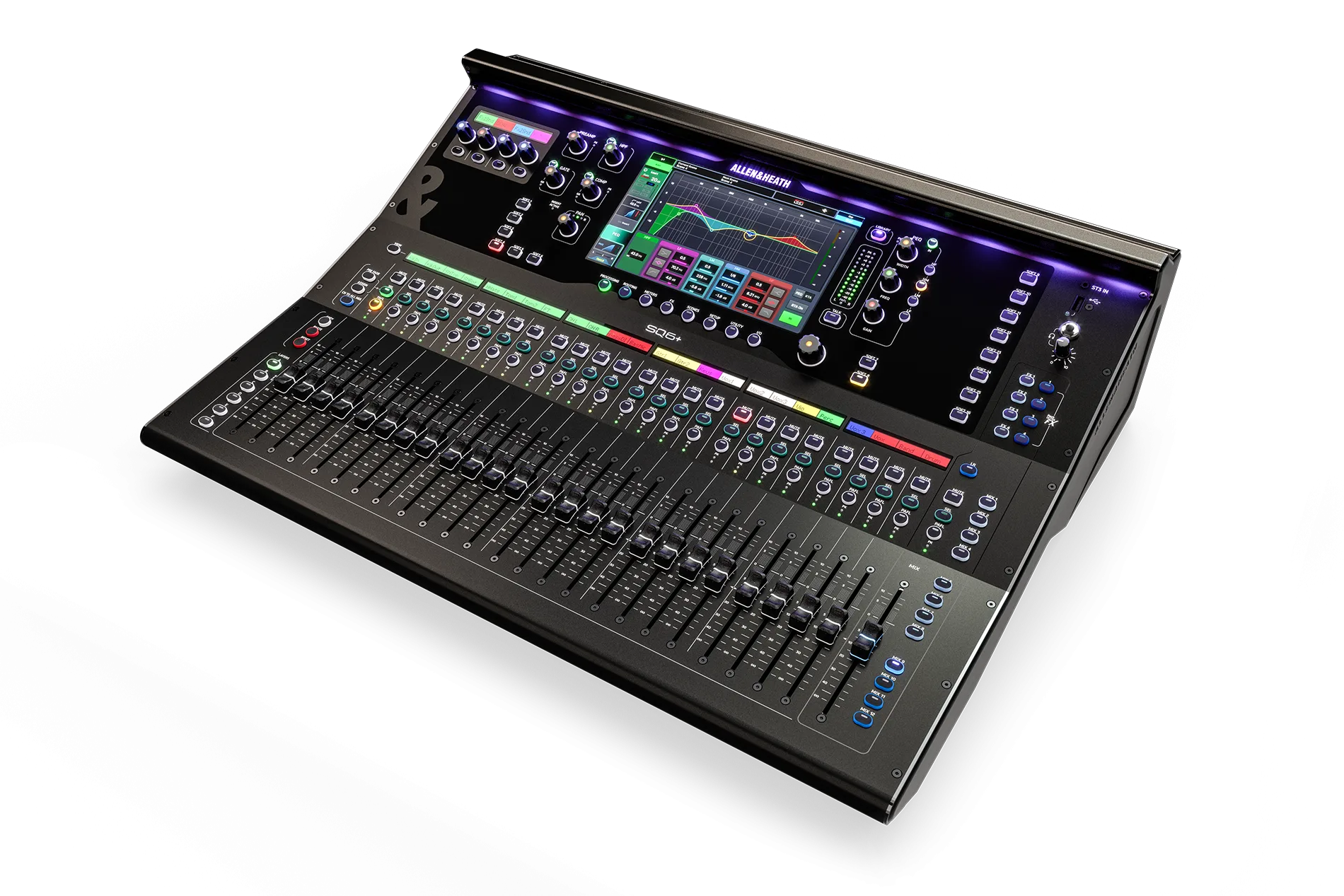

Allen & Heath SQ-6+

The SQ6+ is a professional 48-channel digital mixer built around Allen & Heath’s 96 kHz XCVI core for ultra-low latency, high processing power and phase-coherent mixing. It is designed for live sound, AV work and installation applications where reliability and sound quality are essential.

With 25 motorized faders, 16 SoftKeys and 4 SoftRotaries, the SQ6+ offers hands-on control for larger and more complex productions. The 9-inch touchscreen with a new dark interface provides clear navigation and fast access to key mixing functions.

The mixer includes 8 RackExtra FX engines and 4 RackUltra FX engines, all with dedicated send and return channels, plus full channel and mix processing. DEEP Processing support adds advanced premium processing options directly to the console.

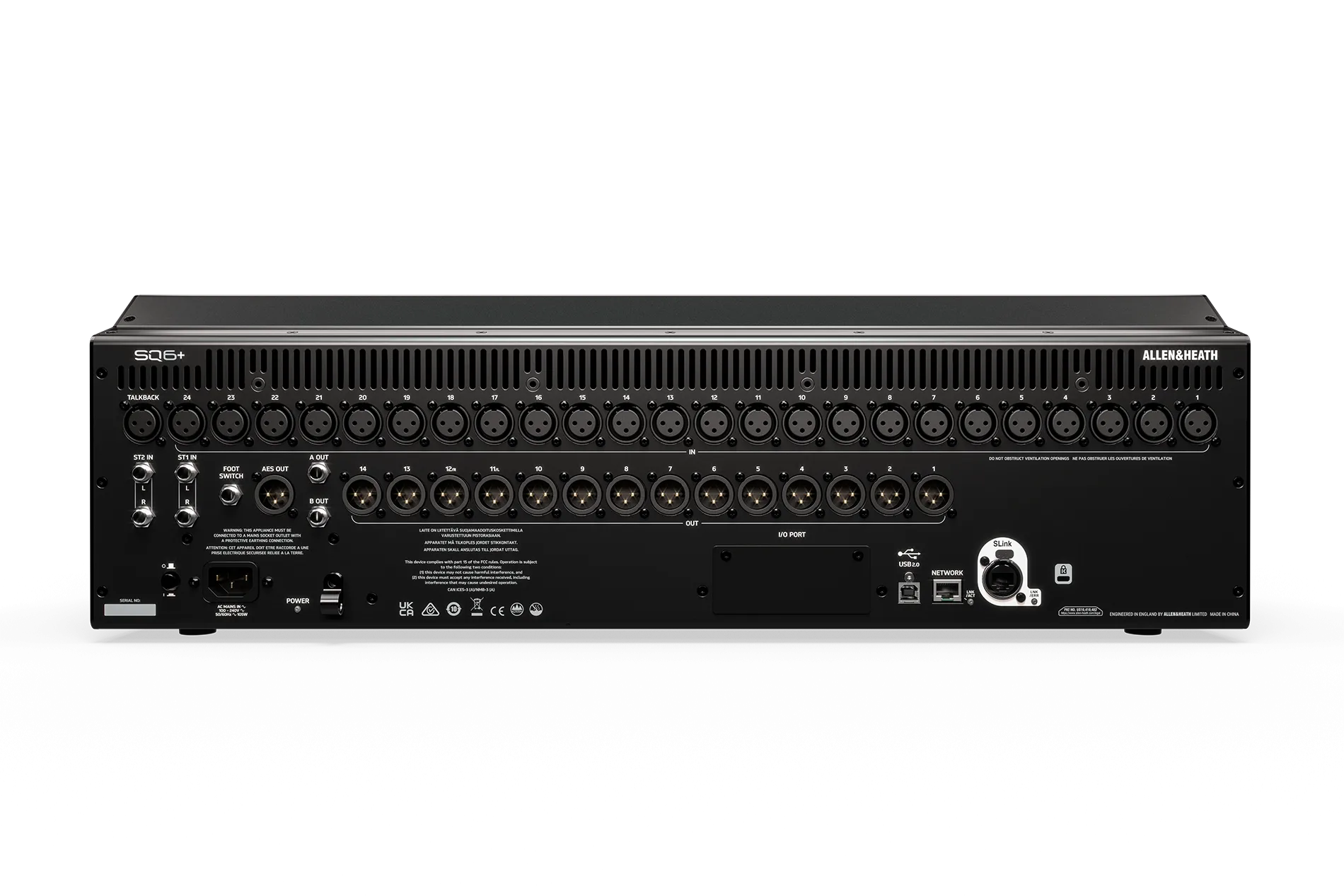

Extensive I/O includes 24 XLR mic/line inputs, 14 XLR outputs, stereo line inputs, talkback, headphone output, AES3 digital output and a 128x128 intelligent SLink port. USB-A and USB-B connectivity support multichannel recording, playback and audio interface use.

Features
48-Channel Digital Mixer
96 kHz XCVI Processing Core
25 Motorized Faders
4 RackUltra FX Engines
9-Inch Touchscreen With Dark Interface
128x128 Intelligent SLink Port
USB Recording And Playback Support
Network Remote Control Support

Specifications
Input Channels: 48
Main Mix: Stereo LR
Aux/Group Mixers: 12 Stereo
Matrices: 6 Mono/Linkable
Mic/Line Inputs: 24 XLR
XLR Outputs: 14
Stereo Line Inputs: 3
Talkback Input: 1 x XLR
Headphone Output: Stereo
AES Output: 1 x AES3 Stereo Digital Output
USB-A: Stereo/Multichannel Recording And Playback
USB-B: 32x32 Audio Interface
SLink Port: 128x128 Intelligent SLink
FX Engines: 8 RackExtra FX, 4 RackUltra FX
Sampling Rate: 96 kHz
Latency: Less Than 0.7 ms
Dynamic Range: 112 dB
Power Consumption: 105W

Dimensions & Weight
Dimensions: 514.9 × 638 × 198.5 mm
Weight: 15.15 kg
