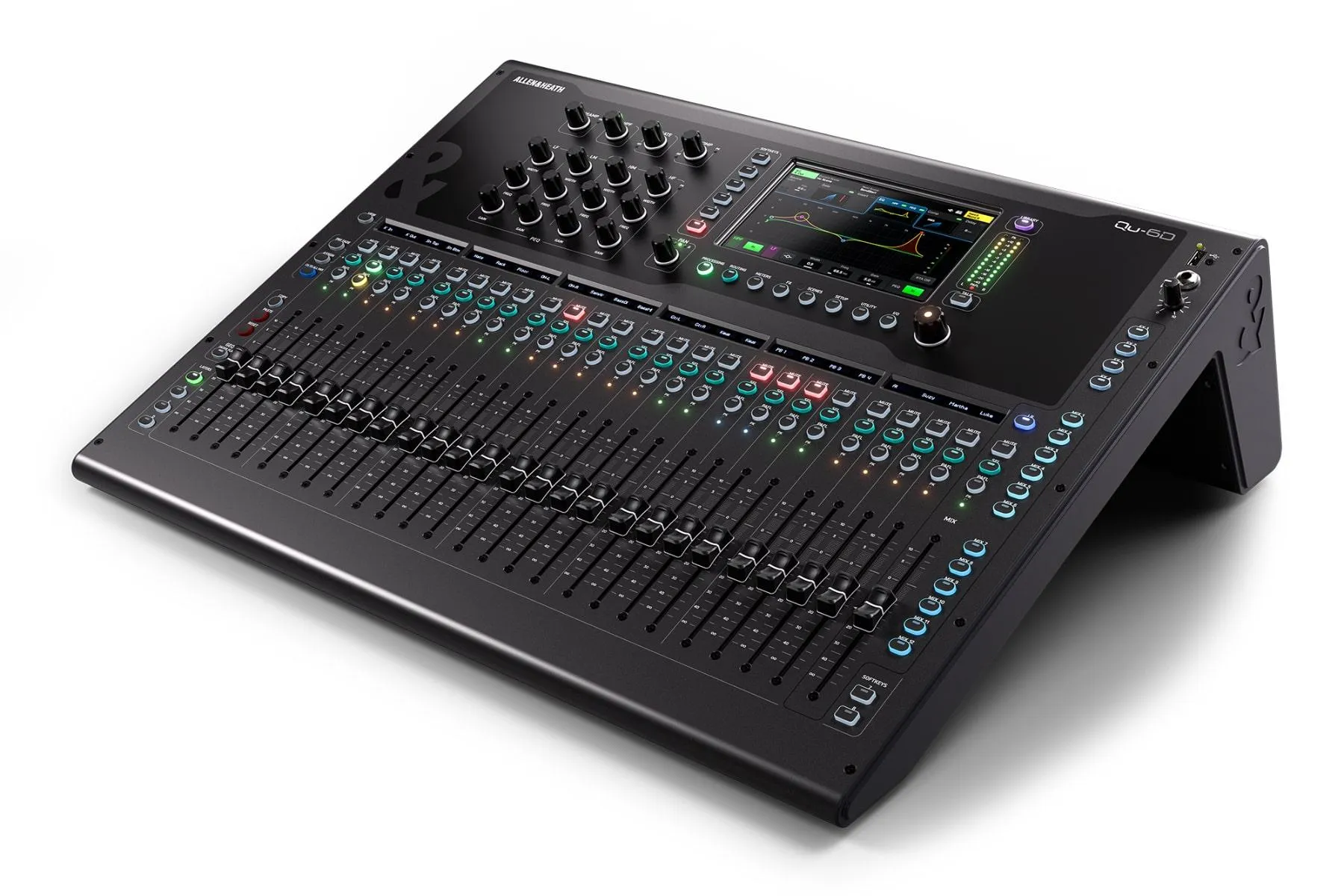

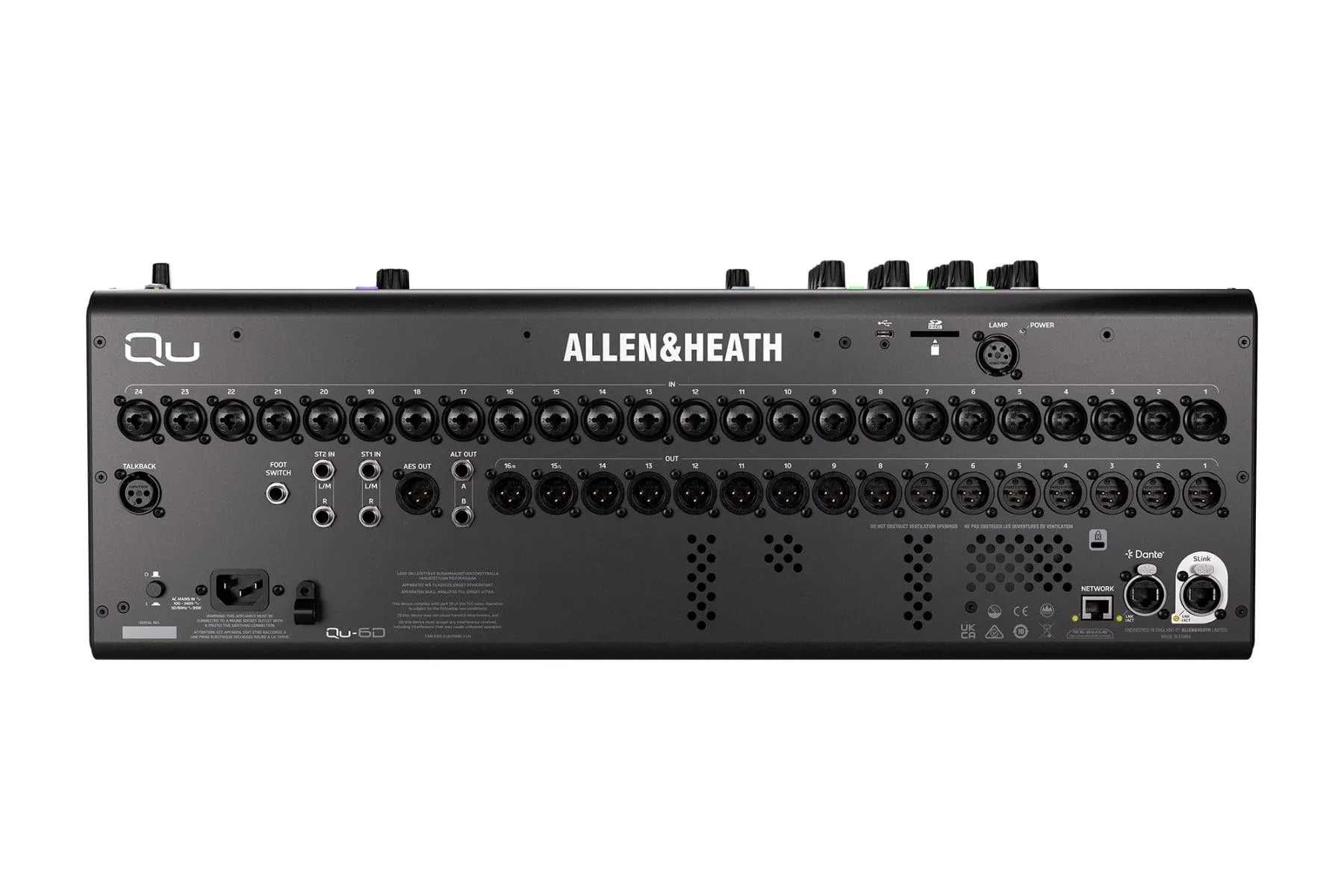

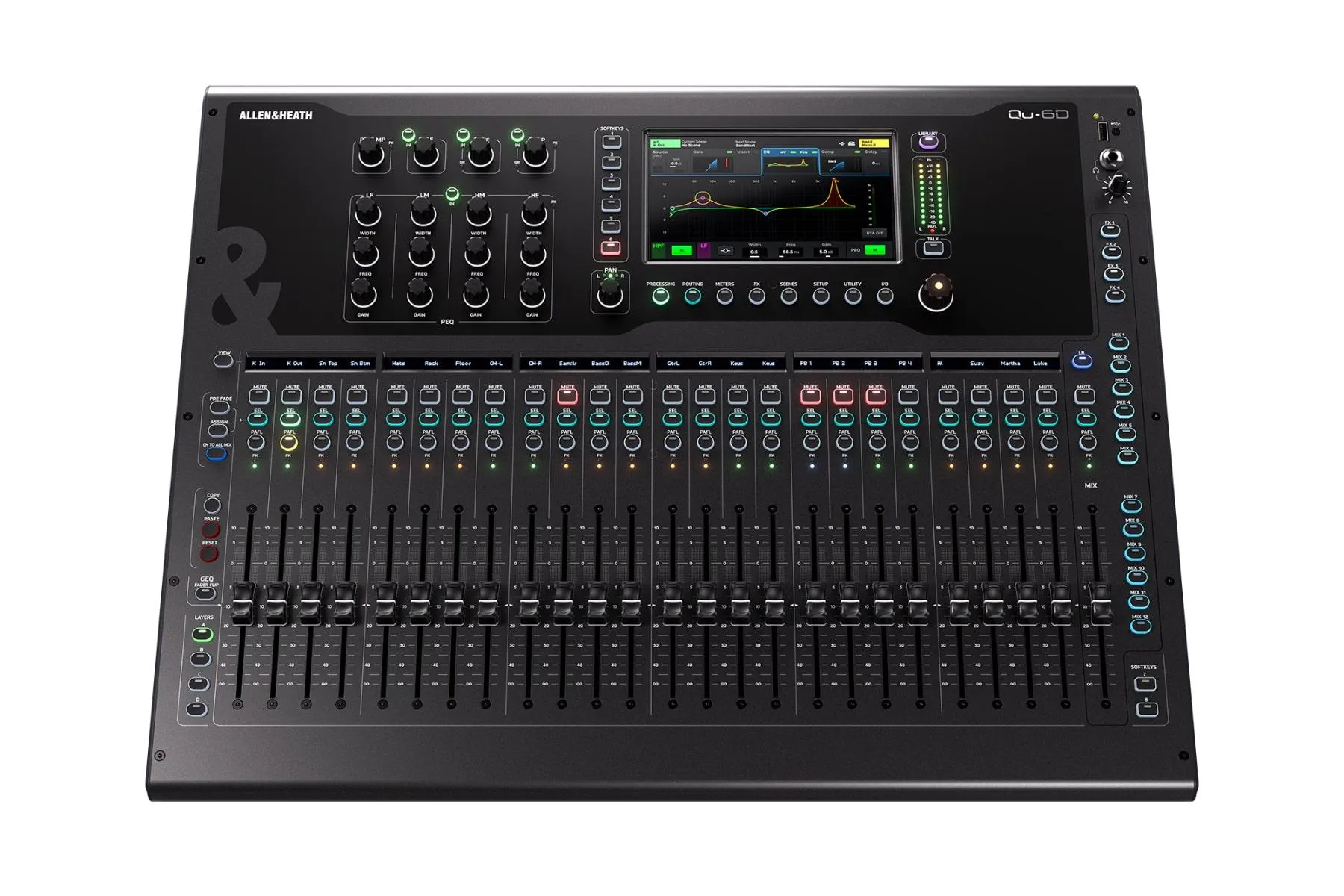

Allen & Heath QU-6 Digital Dante Mixer

Allen & Heath Qu – The legendary digital mixer, now reborn with XCVI processor
The Qu-6 builds on the popular Qu-24 form factor but has been given a powerful boost – now equipped with a 96 kHz XCVI core that enables DEEP Processing, expanded channel capacity with fully flexible patching across four customisable layers, a completely redesigned user interface, extensive hardware upgrades and improved connectivity. In addition, the D variant has a built-in 16x16 48/96 kHz Dante port for compatibility with other Dante-enabled equipment.

Specifications
96kHz FPGA Core
36x inputs to mix (32x mono/linkable, 2x stereo)
Stereo Main LR output
12x mixes (6x mono/linkable Aux, 6x stereo Aux/Group)
4x matrix outputs (mono/linkable)
24x XLR/Jack ‘Combi’ mic/line inputs
2x stereo line inputs (2x TRS each)
1x talkback input
16x XLR outputs
2x TRS outputs
1x AES3 stereo digital output
128x128 intelligent SLink port for Everything I/O expansion and system connections
Stereo headphone output
6x Multi-FX engines with dedicated return channels
7" capacitive touchscreen
25x 100mm motorised faders
4x channel strip layers
8x SoftKeys
USB-A for stereo audio recording/playback and data transfer
USB-C audio interface for multi-channel recording/playback (32x32)
SD card slot for multi-channel audio recording/playback (16x16@96kHz, 32x32@48kHz)
12V lamp connector
Configurable single/dual photo switch input
Configurable chromatic channel meter LEDs
19" rack mountable (optional kit available)
IEC mains connection with global power supply
RJ45 network connector
Remote control via free apps – Windows/MacOS/iOS/Android
609 x 476 x 213 mm
13.5 kg
