Allen & Heath GR4

GR4 is a 1U rack-mounting or desktop audio mixer, providing simple yet comprehensive control of background music and paging in bars, restaurants, stores and other leisure / retail environments. Standout features include optional remote wall plates, a mic input on the front panel, plus a 3.5mm jack on the front for portable music sources.

Mic + Line Inputs

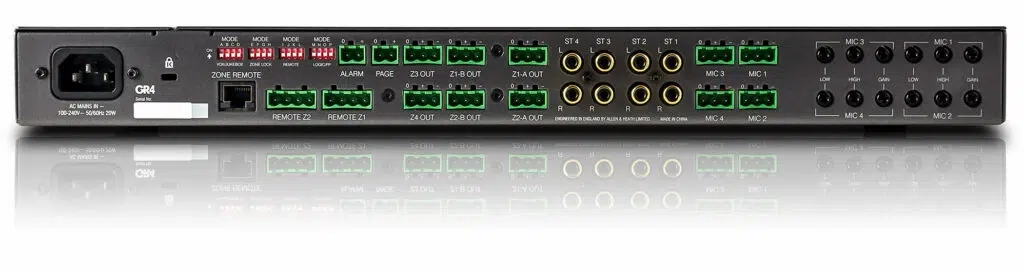

Four mic inputs on rear mount Phoenix connectors with MIC1 selectable to an optional front mounted XLR. Four stereo inputs on rear mount phono connectors. An additional front mounted 3.5mm jack socket overrides input 4 phono source.

Zone Outputs
Two stereo (mono selectable via internal jumper) zones on rear mount Phoenix connectors. An additional two mono zone outputs are available with mix output being selectable from internal jumpers.

Paging + Alarm
Paging and Alarm contact inputs on rear mounted Phoenix connectors allow integration with 3rd party paging stations and fire alarm systems.

Remote
Remote control can be achieved via PL-14 Remote connected to the rear mounted RJ45 or custom/3rd party analogue remotes connected to the rear mounted Phoenix connectors.
