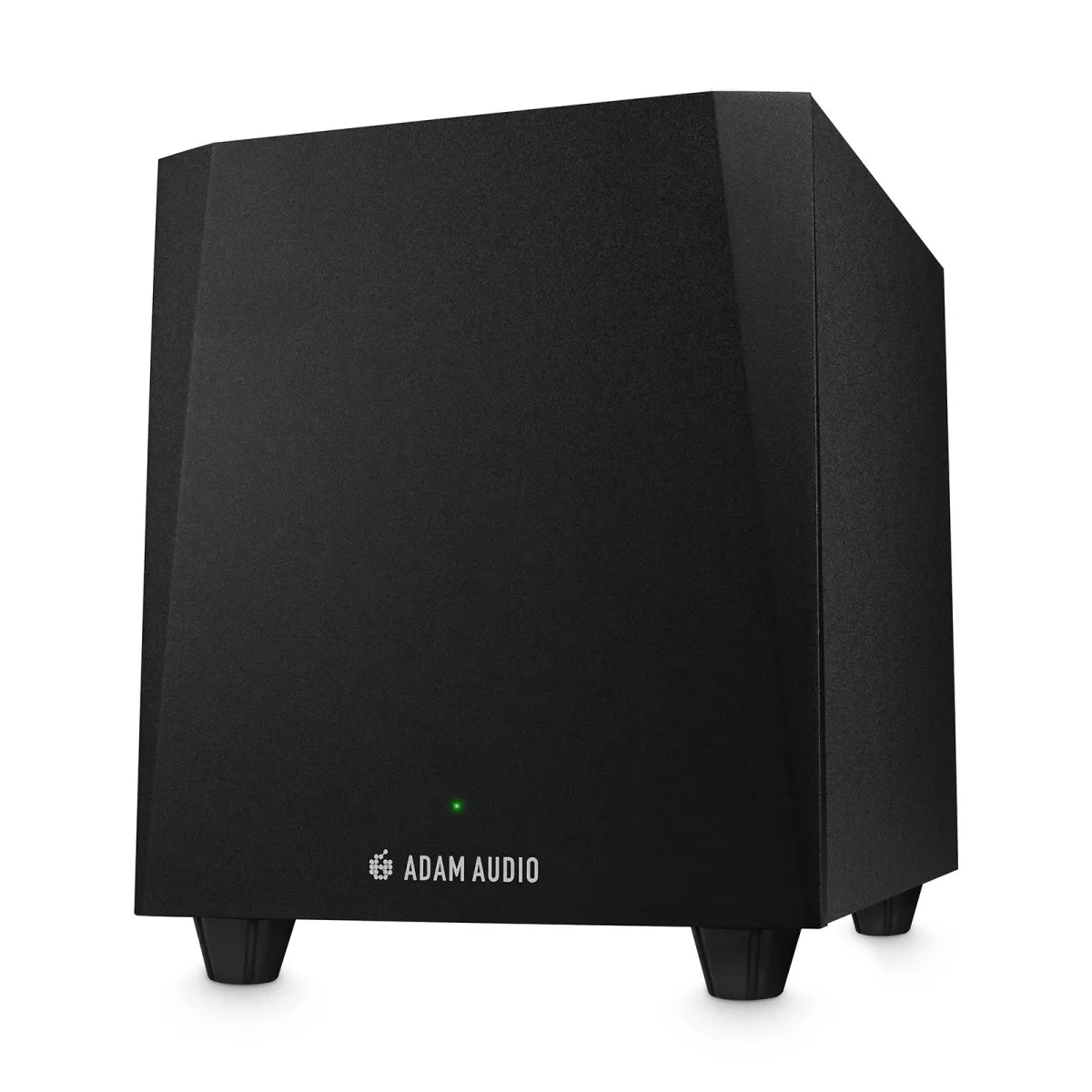

ADAM Audio T10S

10“ Subwoofer (paper)

Amp. Power RMS: 130 W
Frequency Response: 28 Hz - 120 Hz
Max. SPL at 1 m: ≥104 dB
Optimized for T Series studio monitors

Features

Linear bass reproduction down to 28 Hz

Ideal addition to smaller nearfield monitors, specifically the T Series
Maximum Peak sound pressure in 1 m ≥ 104 dB

Powerful, compression-free sound reproduction even at very high sound levels
High efficiency PWM amplifier

Low-distortion amplification at both low and high volume levels
Special 10" woofer with paper diaphragm

Unrestricted bass reproduction for low-fatigue operation
Easy manual or automatic (de-)activation (via optional foot switch)

If desired, monitoring is possible without the low frequencies
Crossover optimized for T Series studio monitors

Takes into account the specific characteristics of the T5V and T7V studio monitors for the best result
Analog XLR / RCA in- and outputs

Optimized for balanced and unbalanced line signals
Small footprint

Flexible positioning in room for optimal sound results
2 years warranty with optional extension to 3 years with the registration of the product

Full repair service if required for 5 years

Specsifications:

Subwoofer (Down-Firing)

Number: 1
Basket Ø: 10" (260 mm)
Voice Coil Ø: 38mm / 1.5"
Cone Material: Paper

Built-In Amplifiers

Subwoofer: 1
Type: PWM
Amp. Power RMS: 130 W

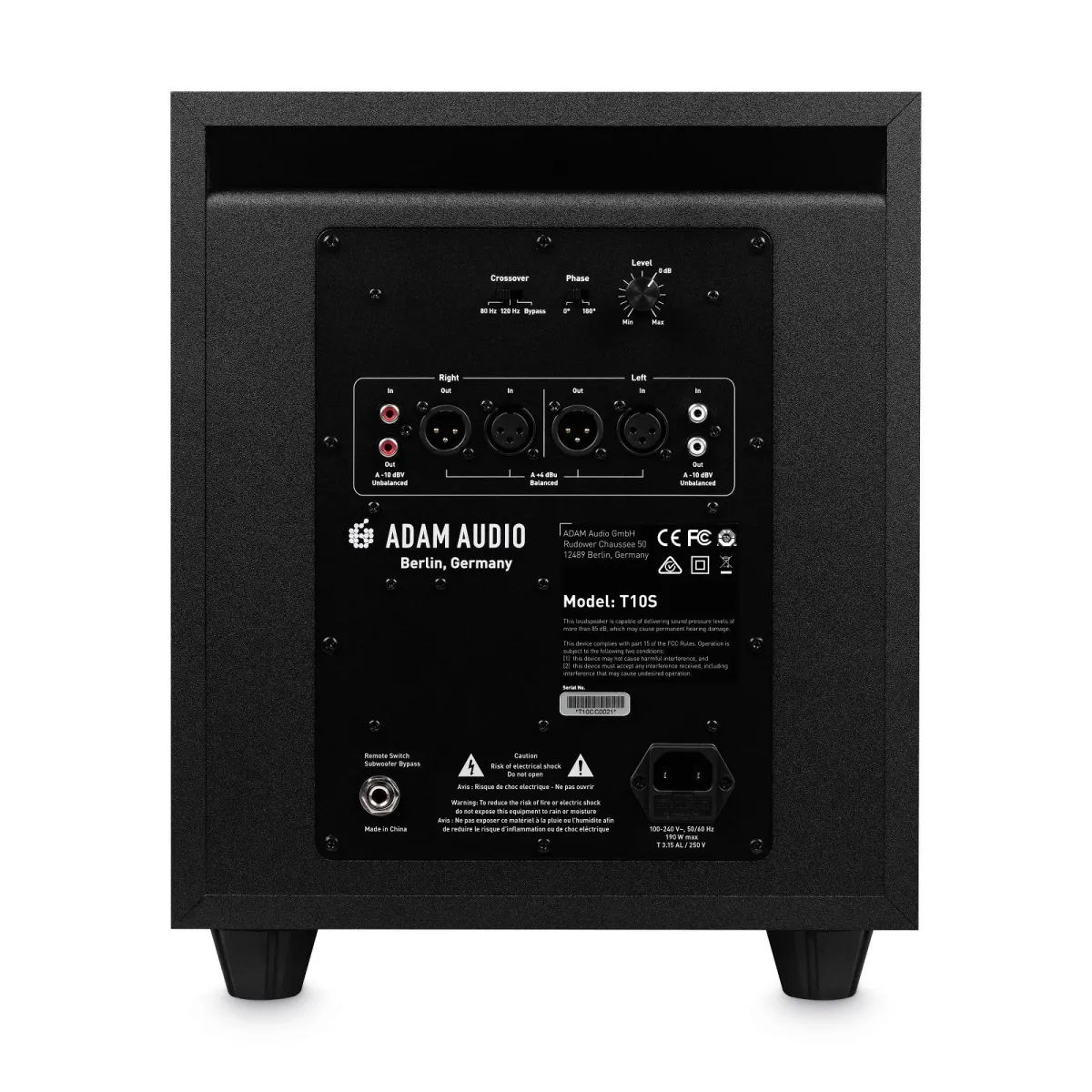

Control Panel

Crossover Frequency: 80 Hz / 120 Hz / Bypass
Phase Inversion: 0° / 180°

Connectors

Analog Inputs: XLR / RCA
Analog Outputs: XLR / RCA

General Data

Frequency Response: 28 Hz - 120 Hz (@ -6 dB)
THD > 60 Hz: 0.6%
Max. SPL at 1 m (hemisphere): ≥104 dB
Max. Power Consumption: 190 W
Input Sensitivity: +4 dBu / -10 dBV
Panel: Rear
Bypass: Yes, via footswitch (not included)
Standby: Yes, activates after 15 minutes with no incoming signal
Weight: 27 lb (12.2 kg)
Height x Width x Depth: 15.4" (390 mm) x 12.5" (318 mm) x 16.25" (413 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide, Welcome Card

Package includes:

ADAM Audio T10S studio subwoofer x1
Power cord x1
