ADAM Audio Sub8 PRO

The ADAM Audio Sub8 PRO is a professional active subwoofer designed to extend the low-frequency response of compact stereo and multichannel monitoring systems. It combines an 8-inch high-excursion woofer with a powerful PWM amplifier and an FEA-optimized front-firing bass port for controlled, detailed bass reproduction.

Network connectivity via Ethernet provides access to ADAM Control software, enabling manual time alignment, four-band parametric EQ, room calibration and firmware updates. The subwoofer also supports the import of Sonarworks SoundID Reference calibration profiles for integration into calibrated studio monitoring setups.

With Stereo, LFE and Wide operating modes, the Sub8 PRO adapts to conventional stereo and 2.1 monitoring, immersive audio systems and full-range applications. Adjustable phase, level and bass management settings provide additional flexibility when integrating the subwoofer with studio monitors.

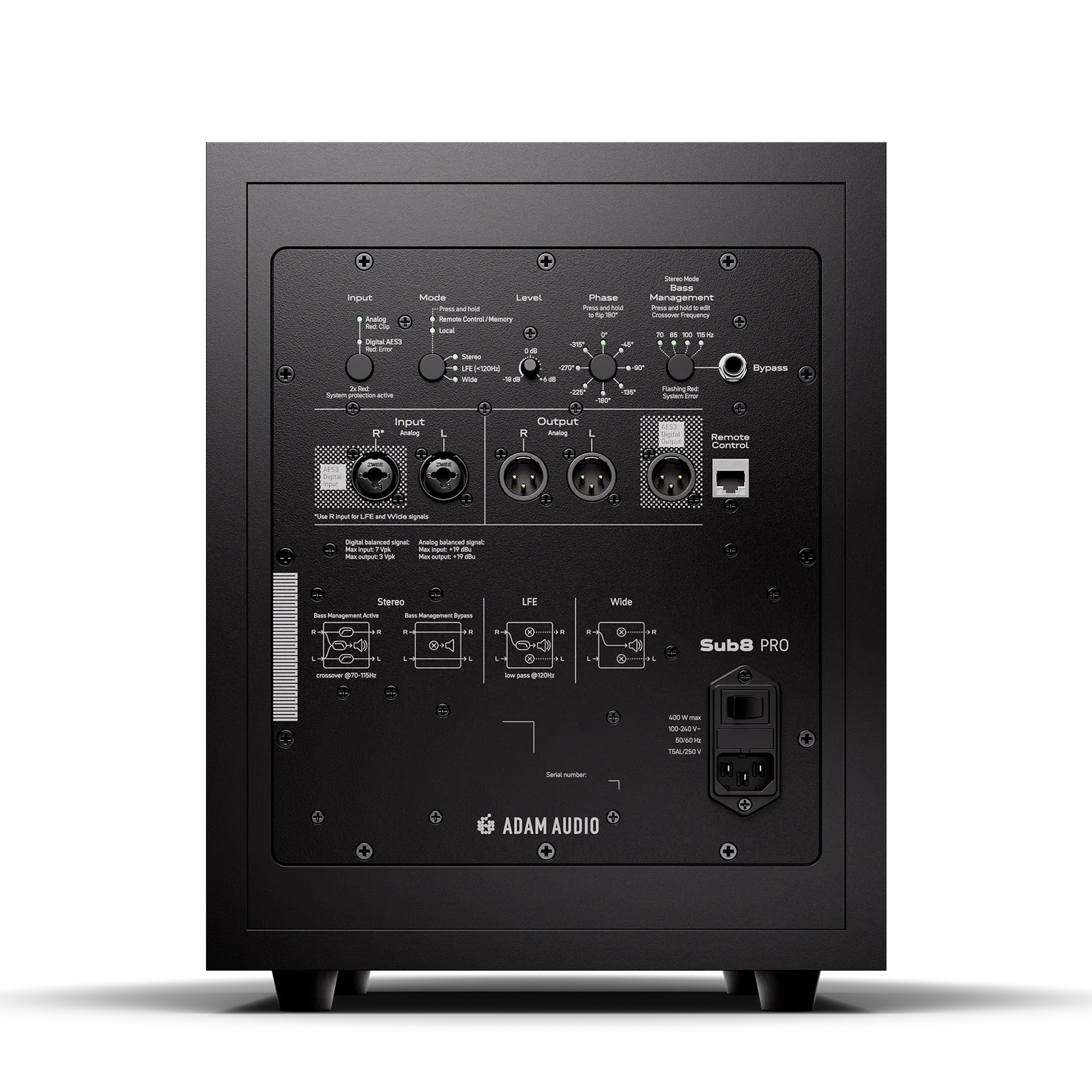

The Sub8 PRO features balanced analog XLR/TRS combo inputs, AES3 digital input, analog XLR outputs and AES3 digital output. Its robust MDF cabinet, protective metal grille and built-in protection circuits make it suitable for demanding studio environments.

Features
Professional Active Studio Subwoofer
8-Inch High-Excursion Woofer
Fiber-Reinforced Paper Cone
PWM Amplifier
FEA-Optimized Front-Firing Bass Port
Stereo, LFE And Wide Operating Modes
Analog XLR/TRS Combo Inputs
AES3 Digital Input And Output
Balanced Analog XLR Outputs
Network Control Via Ethernet
Four-Band Parametric EQ Via ADAM Control
Sonarworks SoundID Reference Calibration Integration
Manual Time Alignment And Firmware Updates
Adjustable Phase, Level And Bass Management
Protective Metal Grille
2-Year Warranty, Extendable To 5 Years With Product Registration

Specifications
Type: Active Studio Subwoofer
Woofer: 8-Inch, Fiber-Reinforced Paper Cone
Amplifier Type: PWM
Amplifier Power: 325 W Peak, 200 W RMS At 3 Ohms
Frequency Response (-3 dB): 30–228 Hz
Frequency Response (-6 dB): 26–300 Hz
Maximum Peak SPL: 112 dB SPL In Full Space At 1 m, IEC-Weighted Noise
Crossover Frequencies: 70, 85, 100, 115 Hz, Adjustable Via ADAM Control
Analog Inputs: 2 × XLR/TRS Combo
Digital Input: XLR AES3
Analog Outputs: 2 × XLR
Digital Output: XLR AES3
Analog Input Impedance: 25 kOhms
Digital Input Impedance: 110 Ohms
Maximum Input Level: +19 dBu
AD Converter: 24-Bit Via XLR/TRS Inputs
Internal Sample Rate: 96 kHz
Delay: 0–10 ms, 32-Bit Resolution
Network Connection: RJ45 Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control For Windows And macOS
Room Adaptation: Back Panel, Extended Calibration, Sonarworks SoundID Reference Integration
Parametric EQ: 4 Bands
Level Range: -18 dB To +6 dB
Input Selection: Analog Or Digital
Phase Settings: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management: 70, 85, 100, 115 Hz
Operating Modes: Remote Control, Local, Stereo, LFE (Below 120 Hz), Wide
Bypass: Via Optional Footswitch And Latched TRS Connection
Power Consumption: 400 W Maximum, 2.5 W Standby
AC Input: 100–240 V, 50/60 Hz
Operating Temperature: -10°C To +40°C
Relative Humidity: Less Than 75%, Non-Condensing
Mounting: 4 × M8 Threaded Inserts On The Bottom
Warranty: 2 Years, Plus 3 Optional Years With Product Registration

Dimensions & Weight
Dimensions: 38.5 × 30 × 36.5 cm (H × W × D)
Weight: 15.3 kg

In The Box
ADAM Audio Sub8 PRO Subwoofer
Power Cable
Quick Start Guide
