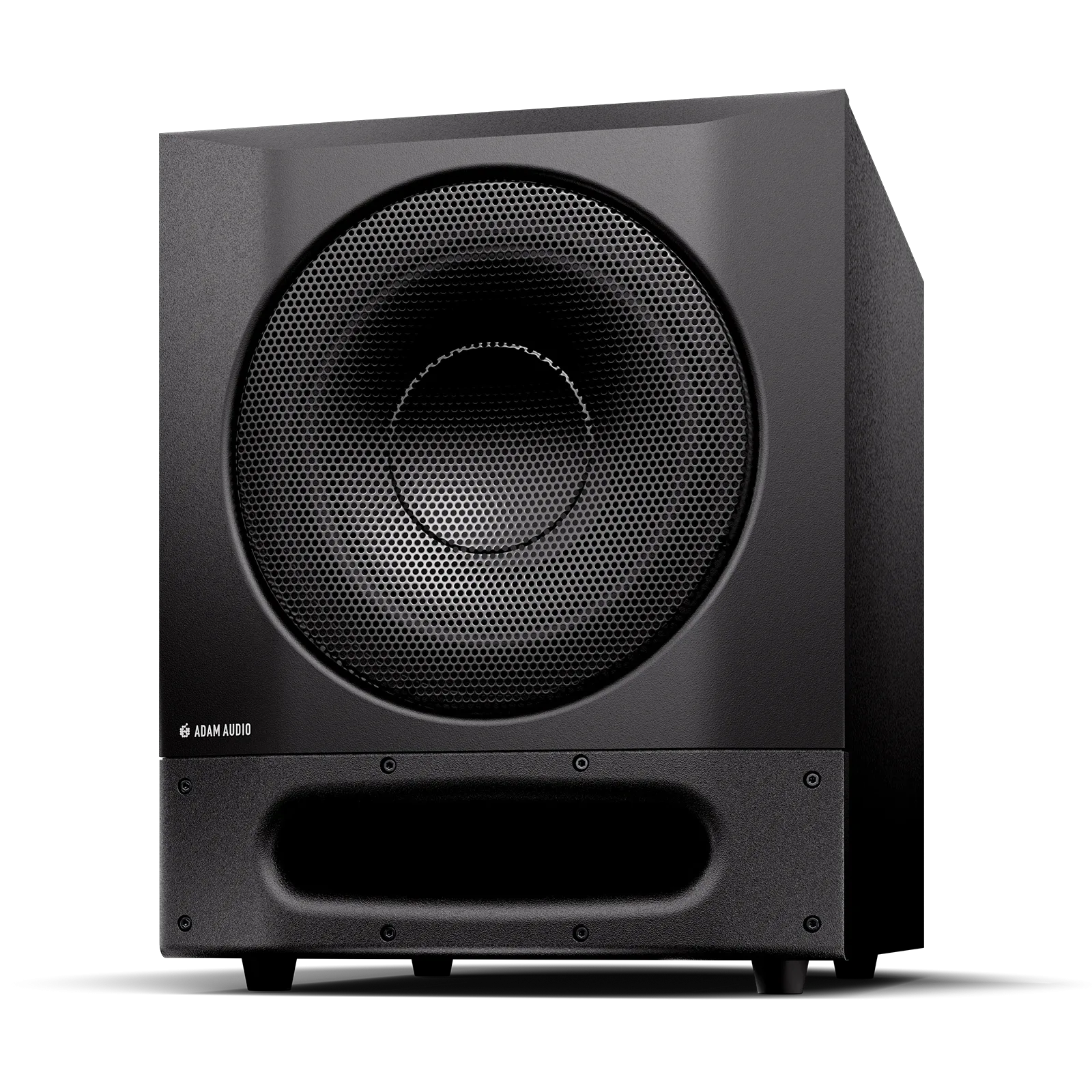

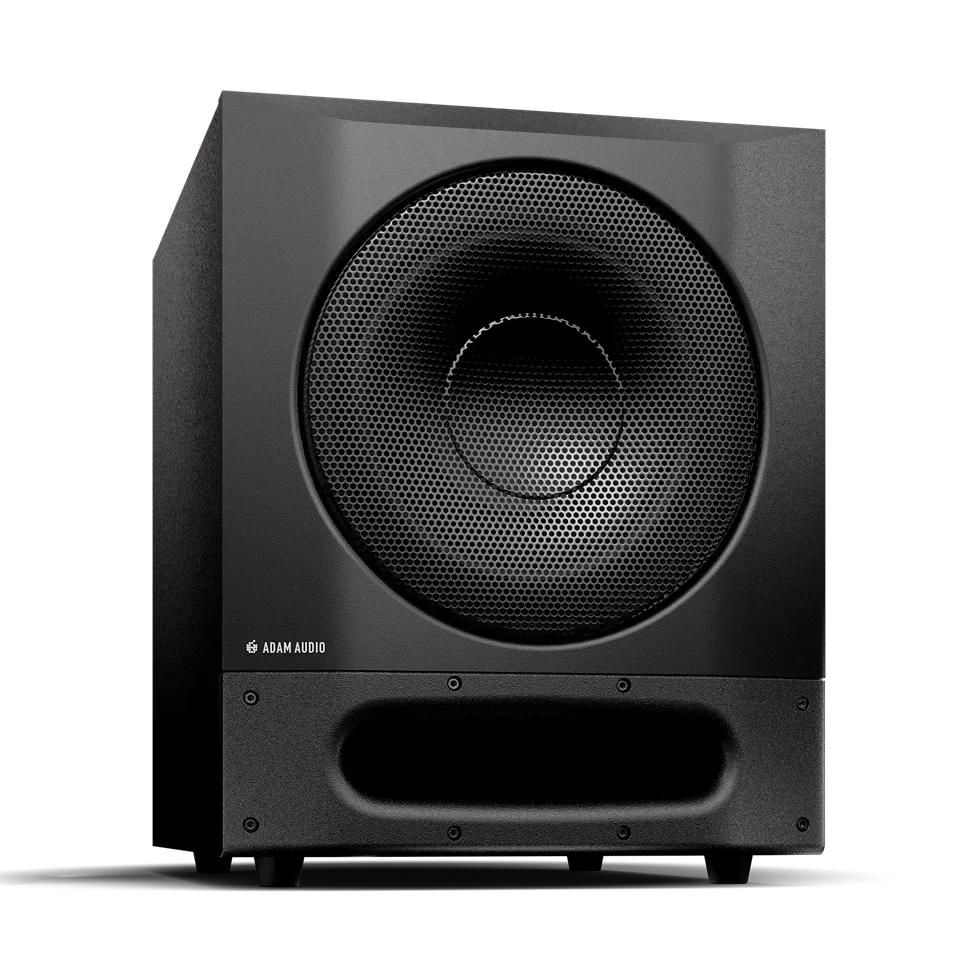

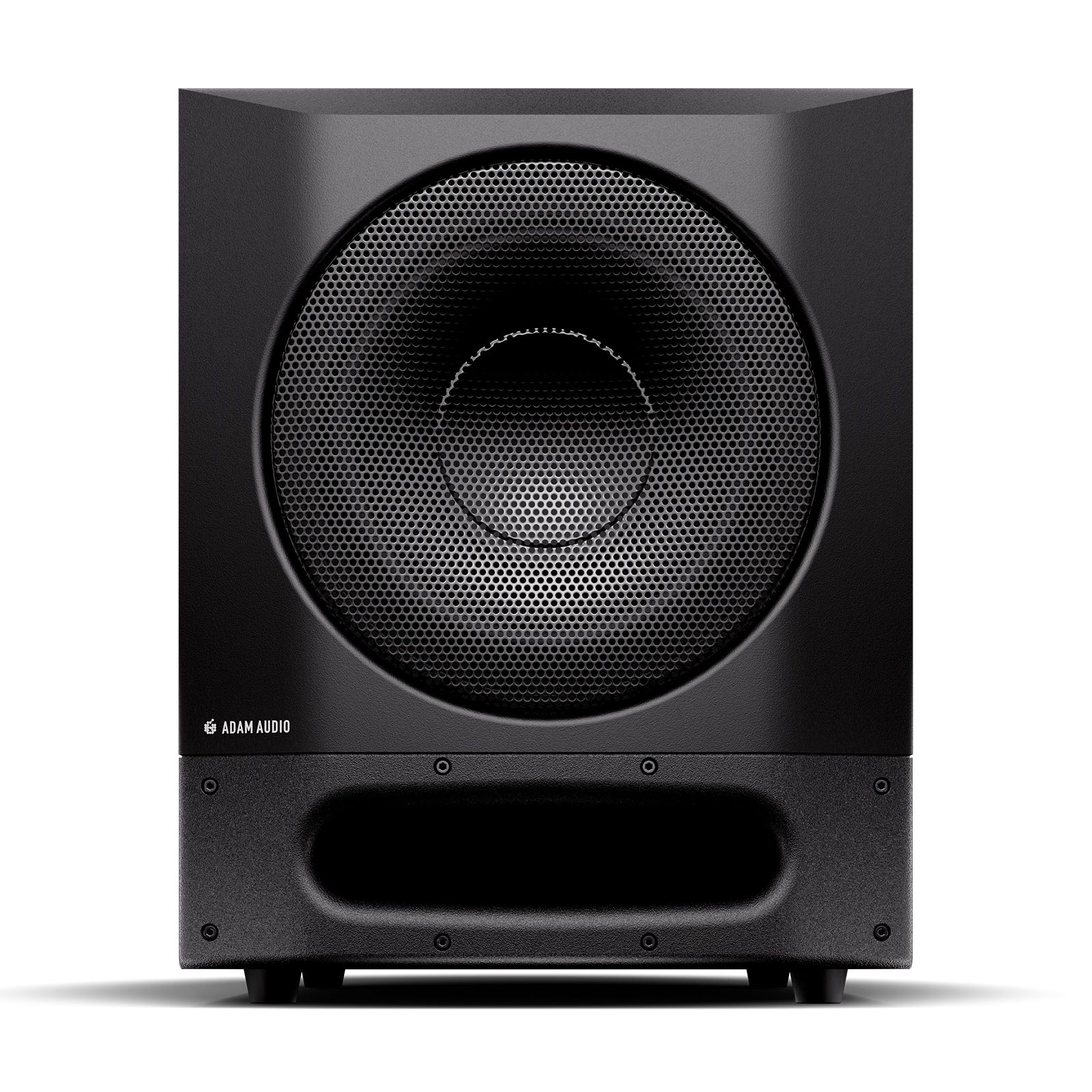

ADAM Audio Sub10 PRO

The ADAM Audio Sub10 PRO is a professional subwoofer designed to extend the low-frequency response of stereo and multichannel monitoring systems. Its high-excursion, fiber-reinforced paper 10-inch woofer and powerful PWM amplifier deliver controlled bass reproduction, supported by an FEA-optimized front-firing bass port.

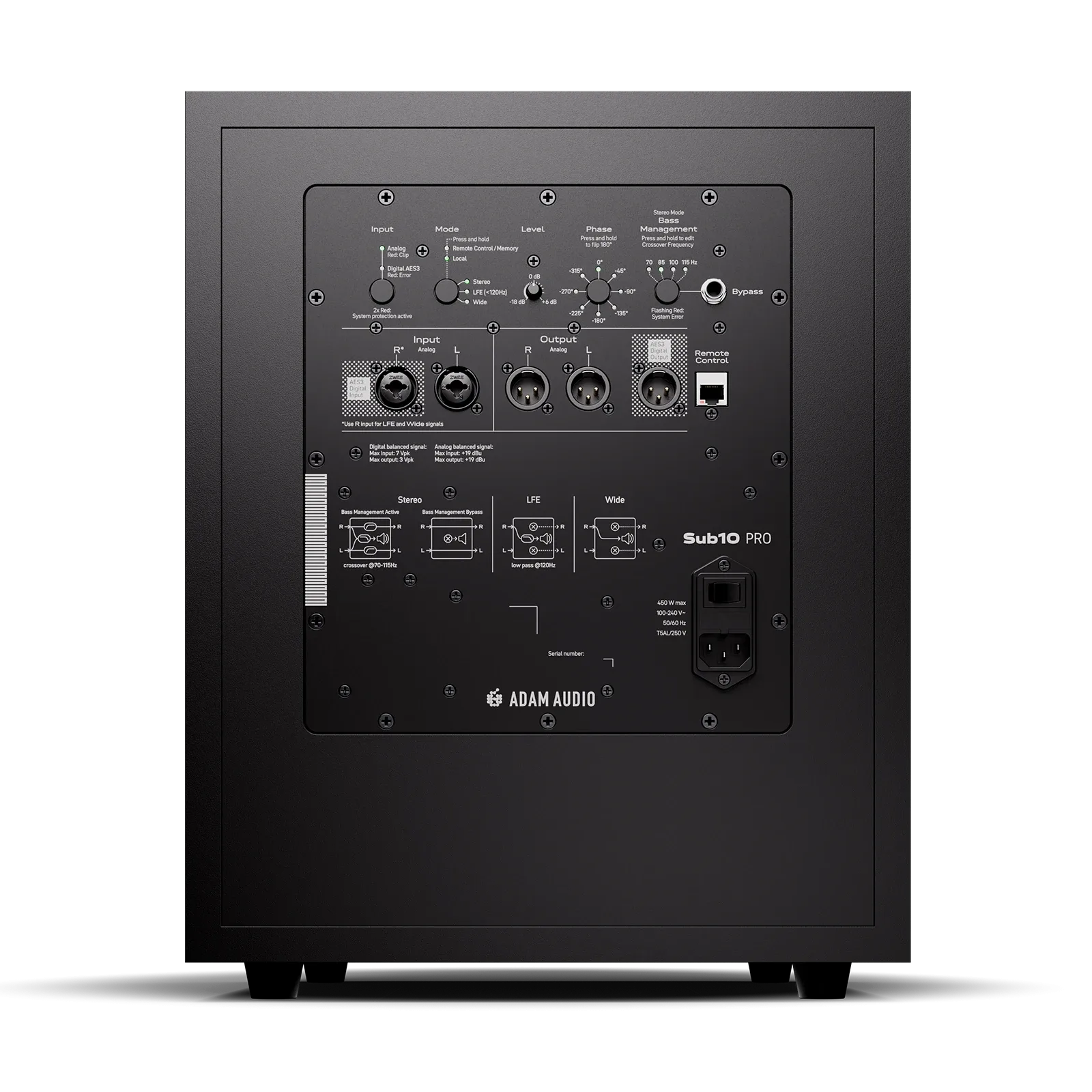

Designed for professional studio integration, the Sub10 PRO offers balanced analog XLR/TRS combo inputs, AES3 digital input and corresponding analog and digital outputs. Adjustable phase, level and bass management settings allow the subwoofer to be integrated into a variety of monitoring configurations.

Network-based ADAM Control software provides four-band parametric EQ for room adaptation, firmware updates and integration of Sonarworks SoundID Reference calibration profiles. Calibration can also be adjusted directly from the rear panel.

Three operating modes—Stereo, LFE and Wide—support conventional 2.1 monitoring, immersive audio setups and full-range applications. The robust MDF cabinet, protective metal grille and built-in protection circuits make the Sub10 PRO suitable for demanding professional environments.

Features
Professional Studio Subwoofer For Stereo And Multichannel Monitoring
10-Inch Fiber-Reinforced Paper Woofer
PWM Amplifier
FEA-Optimized Front-Firing Bass Port
Analog XLR/TRS Combo Inputs
AES3 Digital Input And Output
Balanced XLR Analog Outputs
Stereo, LFE And Wide Operating Modes
Four-Band Parametric EQ Via ADAM Control
Sonarworks SoundID Reference Calibration Integration
Adjustable Phase, Level And Bass Management
Network Control Via Ethernet
Protective Metal Grille
2-Year Warranty, Extendable To 5 Years With Product Registration

Specifications
Type: Active Studio Subwoofer
Woofer: 10-Inch, Fiber-Reinforced Paper Cone
Amplifier Type: PWM
Amplifier Power: 325 W Peak, 200 W RMS At 3 Ohms
Frequency Response (-3 dB): 22–264 Hz
Frequency Response (-6 dB): 21–300 Hz
Maximum Peak SPL: 113 dB SPL In Full Space At 1 m, IEC-Weighted Noise
Crossover Frequencies: 70, 85, 100, 115 Hz, Adjustable Via ADAM Control
Analog Inputs: 2 × XLR/TRS Combo
Digital Input: XLR AES3
Analog Outputs: 2 × XLR
Digital Output: XLR AES3
Analog Input Impedance: 25 kOhms
Digital Input Impedance: 110 Ohms
Maximum Input Level: +19 dBu
AD Converter: 24-Bit Via XLR/TRS Inputs
Internal Sample Rate: 96 kHz
Delay: 0–10 ms, 32-Bit Resolution
Network Connection: RJ45 Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control For Windows And macOS
Room Adaptation: Rear Panel, Extended Calibration, Sonarworks SoundID Reference Integration
Parametric EQ: 4 Bands
Level Range: -18 dB To +6 dB
Input Selection: Analog Or Digital
Phase Settings: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management: 70, 85, 100, 115 Hz
Bypass: Via Optional Footswitch And Latched TRS Connection
Power Consumption: 450 W Maximum, 2.5 W Standby
AC Input: 100–240 V, 50/60 Hz
Operating Temperature: -10°C To +40°C
Relative Humidity: Less Than 75%, Non-Condensing
Mounting: 4 × M8 Threaded Inserts On The Bottom
Warranty: 2 Years, Plus 3 Optional Years With Product Registration

Dimensions & Weight
Dimensions: 45 × 36 × 45 cm (H × W × D)
Weight: 22.8 kg

In The Box
ADAM Audio Sub10 PRO Subwoofer
Power Cable
Quick Start Guide
