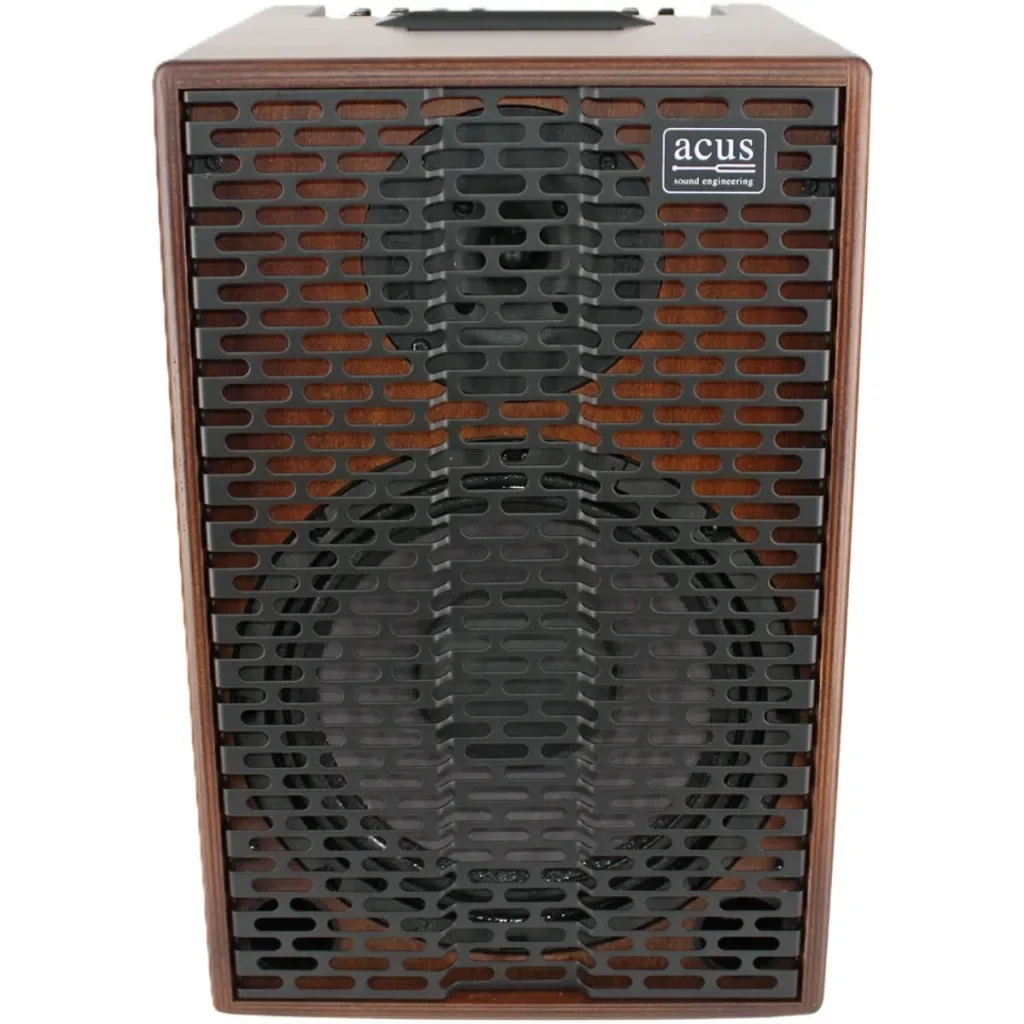

Acus Simon 10 Wood

The Acus Simon 10 Wood is a compact 300-watt acoustic amplifier designed for guitar, vocals and other acoustic instruments. Its larger speaker system provides additional headroom and sound pressure while retaining a natural and detailed sound character. The walnut-style wood cabinet combines a refined appearance with a solid plywood construction.

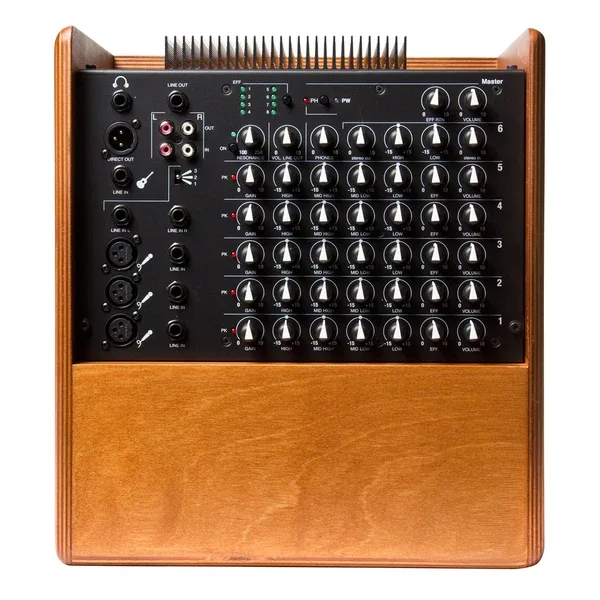

The amplifier features three separately adjustable channels with jack or balanced XLR inputs and switchable phantom power. Each channel provides gain, three-band push/pull EQ, effect and volume controls, while Channel 1 also offers a compressor and selectable Flat, Bass and Jazz modes.

The built-in effects section provides Reverb 1, Reverb 2, Chorus and Delay, with adjustable effect return and effect length. Effects can be controlled using an optional footswitch, making the Simon 10 Wood suitable for live performance as well as studio applications.

Bluetooth Audio In and an AUX channel with TRRS connectivity allow playback from mobile devices, while the balanced XLR Direct Out provides a convenient connection to a PA system or audio interface. The Direct Out has a separate volume control so the PA signal can be adjusted independently of the amplifier's own sound.

The 10-inch bass speaker and 1-inch compression driver are combined with an active crossover and bass reflex enclosure for a powerful, controlled sound. A 36 mm speaker stand flange and tilt function provide flexible positioning, while the beveled plywood cabinet remains compact enough for cafés, smaller concerts, churches and duo setups.

Features
300 W Power
10" Bass Speaker
1" Compression Driver
Active Crossover
Bass Reflex Enclosure
3 Separately Adjustable Channels
Switchable Phantom Power
3-Band Push/Pull EQ Per Channel
Built-In Compressor With Flat, Bass And Jazz Modes
Reverb 1, Reverb 2, Chorus And Delay
Adjustable FX Return And FX Length
Footswitch Input
Bluetooth Audio In
AUX With TRRS Connectivity
Balanced XLR Direct Out
36 mm Speaker Stand Flange
Tilt Function

Specifications
Power: 300 W
Speaker System: 1 × 10" Bass Speaker, 1 × 1" Compression Driver
Enclosure: Bass Reflex
Frequency Range: 50 Hz–20 kHz
Channels: 3
Channel Inputs: Jack / Balanced XLR
Phantom Power: Switchable
Channel EQ: 3-Band Push/Pull, -15 dB to +15 dB
Gain: -12 dB to +15 dB
AUX Input: Stereo Mini Jack
Effects: Reverb 1, Reverb 2, Chorus, Delay
Direct Out: Balanced XLR
TRRS Output: Yes
Bluetooth Audio In: Yes
Cabinet: Plywood
Cabinet Shape: Beveled
Speaker Stand Flange: 36 mm
Colour: Dark Cherry

In The Box
Acus Simon 10 Wood
Power Supply
Bluetooth Receiver BT100

Dimensions & Weight
Dimensions: 30.1 × 38.4 × 46.4 cm
Weight: 13.6 kg
